Inspection Pit Earth – Earth Pits for Earthing and Lightning Protection

Key Features

Designed for Inspection Pit Earth Systems

Provides reliable testing access for earthing and lightning protection networks.

High Conductivity Copper Material

Ensures accurate electrical measurement and stable grounding performance.

Multiple Connection Points

Available in 5-hole and 7-hole configurations for flexible use.

Corrosion-Resistant Structure

Suitable for underground and long-term installation environments.

Easy Pit Integration Design

Fits directly into inspection pit slots for quick installation.

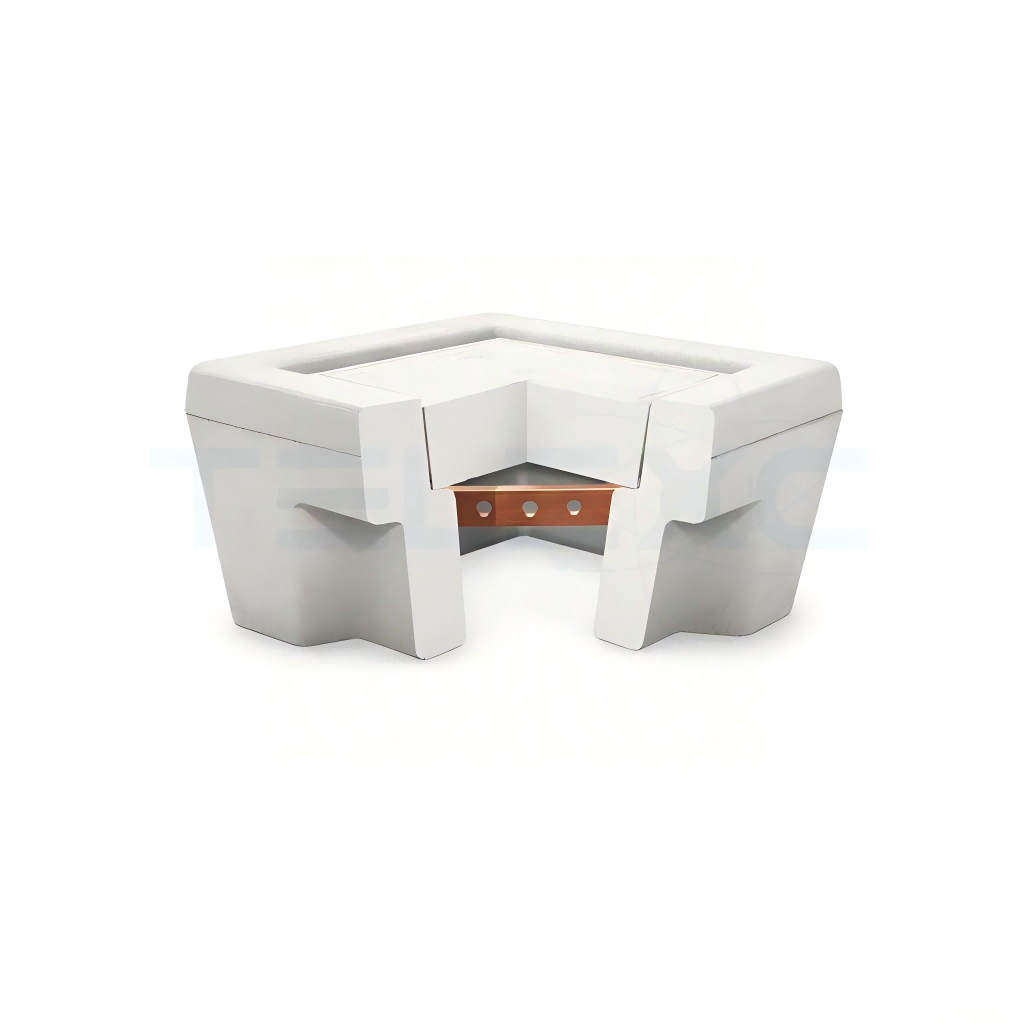

Inspection Pit Earth is a high-quality copper earthing testing bar designed for installation inside lightweight and standard inspection pits. It provides a safe and accessible connection point for testing earthing and lightning protection systems. Manufactured from premium-grade copper, it ensures excellent conductivity, corrosion resistance, and long service life in all grounding applications.

International Standard Compliance

Manufactured in accordance with IEC 62561-5:2012 and BS EN 50164-5:2009, ensuring reliable performance for lightning protection and earthing systems.
Uses copper material compliant with BS EN 13601, ensuring high conductivity and mechanical integrity.
Designed as per BS 7430 grounding system requirements, ensuring safe and efficient earthing performance.
Suitable for Inspection Pit Earth systems used in modern grounding and lightning protection installations.
Produced under a certified ISO 9001:2015 quality management system, ensuring consistent quality and traceability.

Construction & Materials

High Purity Copper Body

Made from high-conductivity copper for accurate earthing performance.

Precision Machined Design

Ensures correct hole alignment and strong conductor connection.

Corrosion Resistant Finish

Suitable for long-term underground installation in harsh conditions.

Compact Lightweight Structure

Designed for easy handling and installation inside pits.

Durable Mechanical Strength

Withstands installation stress and long-term environmental exposure.

Installation Guide

Place Inspection Pit Earth bar inside pit slot diagonally.
Ensure correct alignment with pit structure.
Connect grounding conductors to available holes.
Tighten connections for secure electrical contact.
Verify continuity before system commissioning.

Quality Control

1. IQC – Incoming Inspection

Copper material checked for purity and conductivity.

2. IPQC – Process Control

Manufacturing monitored for accuracy and consistency.

3. First Piece Inspection

Initial sample verified before mass production.

4. Mass Production Control

Batch inspection ensures uniform quality output.

5. OQC / FQC – Final Inspection

Final product checked before packaging and dispatch.

Technical Parameters

Applications

Inspection Pit Earth Testing Systems

Used for safe testing of earthing resistance and continuity.

Lightning Protection Systems

Provides inspection access for lightning grounding networks.

Substation Grounding Systems

Ensures reliable measurement points for electrical safety.

Building Earthing Installations

Used in residential and commercial grounding systems.

Infrastructure Projects

Suitable for bridges, tunnels, and industrial grounding networks.

Product Advantages

Accurate Testing Performance

Ensures reliable earthing measurement results.

High Conductivity Copper

Provides stable electrical performance.

Durable Construction

Designed for long-term underground use.

Easy Installation Design

Simple integration inside inspection pits.

Cost Efficient Solution

Low maintenance and long service life.

FAQs

1. What is Inspection Pit Earth used for?
It is used for testing earthing systems inside inspection pits.

2. What material is used?
High conductivity copper is used for reliable performance.

3. How many connection points are available?
It is available in 5-hole and 7-hole versions.

4. Is it suitable for outdoor use?
Yes, it is corrosion resistant and suitable for underground use.

5. What standard does it follow?
It complies with BS EN 13601 and BS 7430.

6. Can it be customized?
Yes, customization is available for project requirements.

7. Where is it commonly used?
In substations, buildings, and lightning protection systems.

8. Does it require maintenance?
No, it is designed for long-term low-maintenance use.

Why Choose Telexc

Advanced Manufacturing Capability

High-quality production for grounding components.

Strict Quality Standards

ISO-based multi-stage inspection system.

Customized Solutions Available

Flexible design for project requirements.

Global Supply Support

Reliable export and logistics network.

Engineering Expertise

Technical assistance for installation and design.
