MPO Fiber Optic Patch Panel Adapter Plates

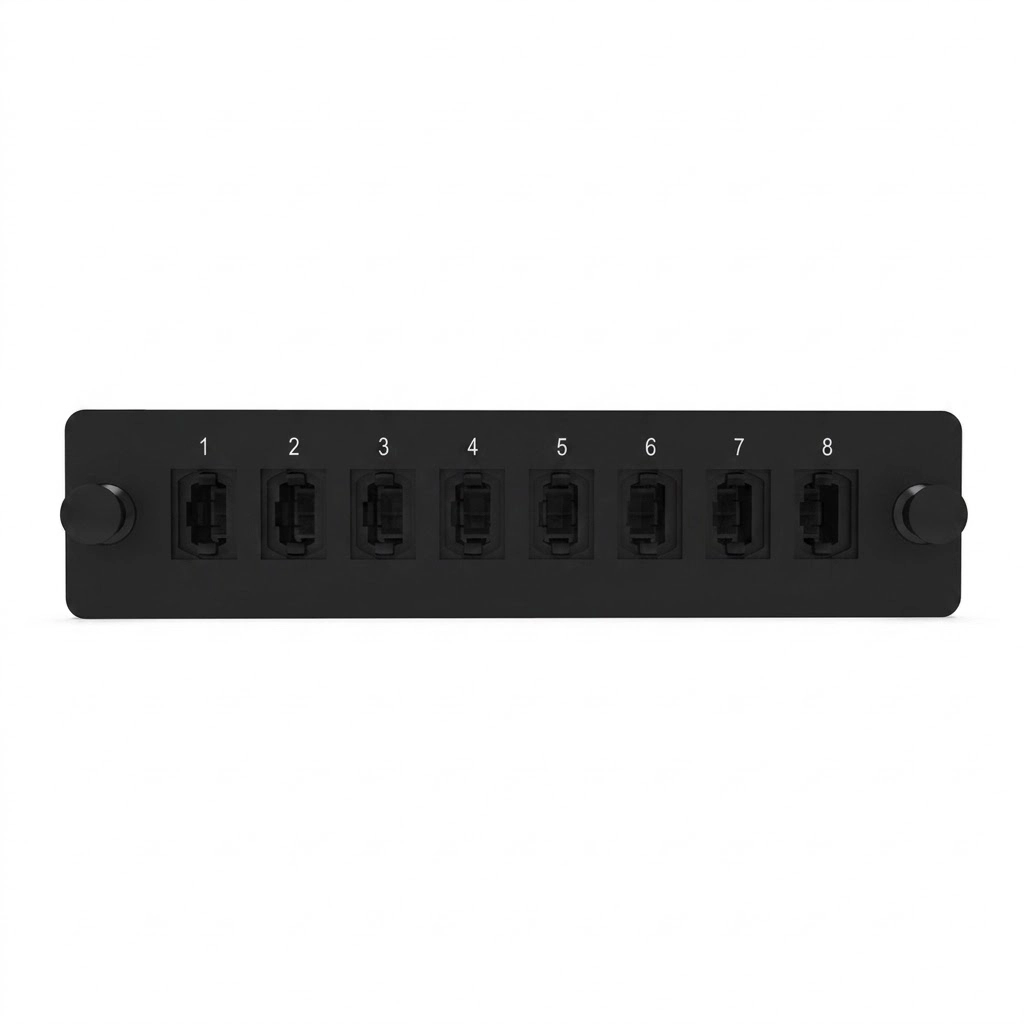

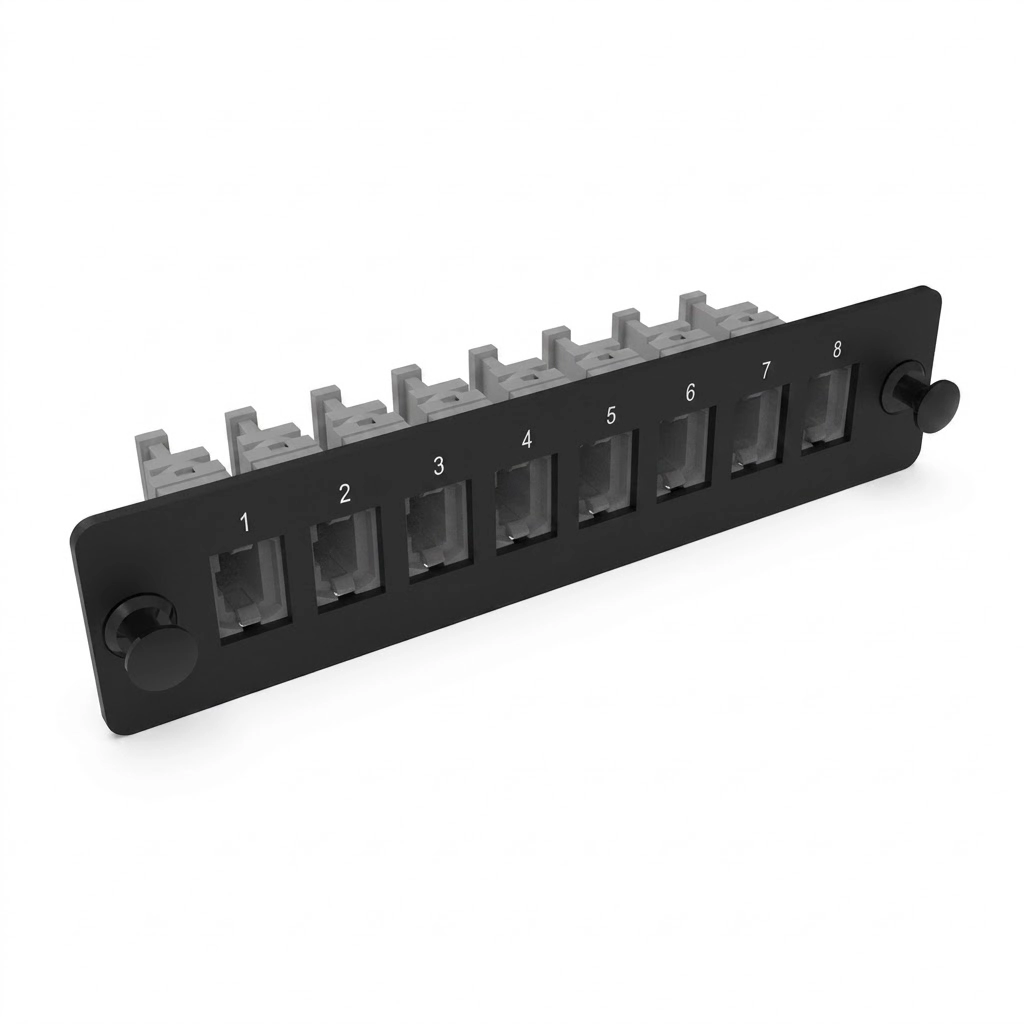

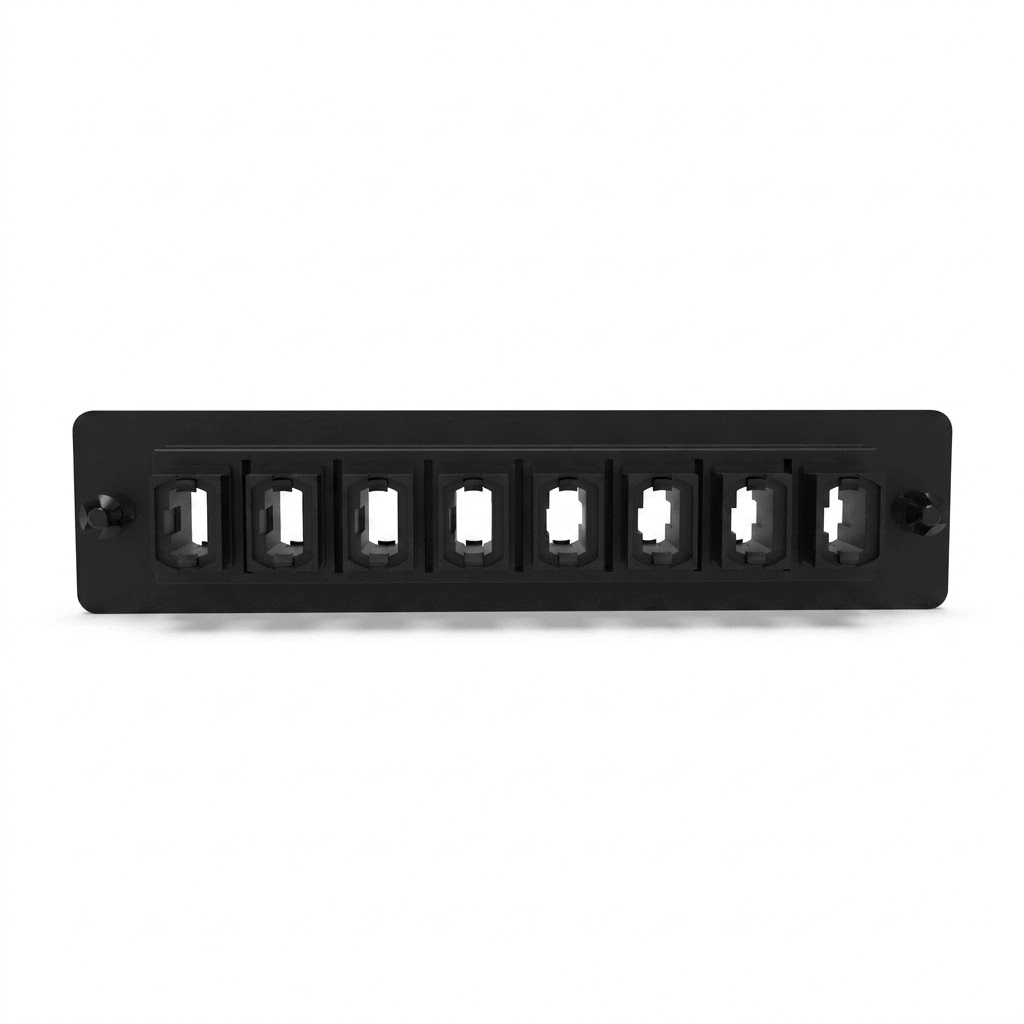

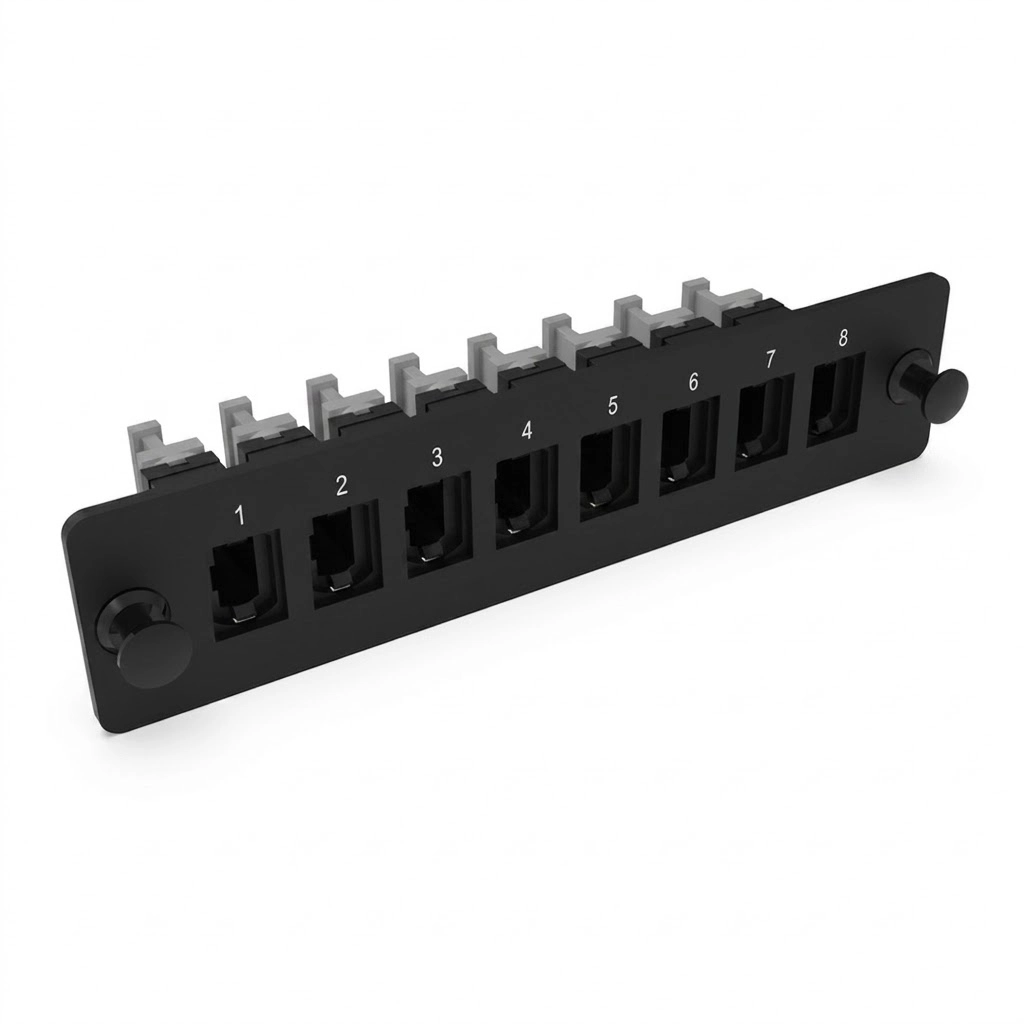

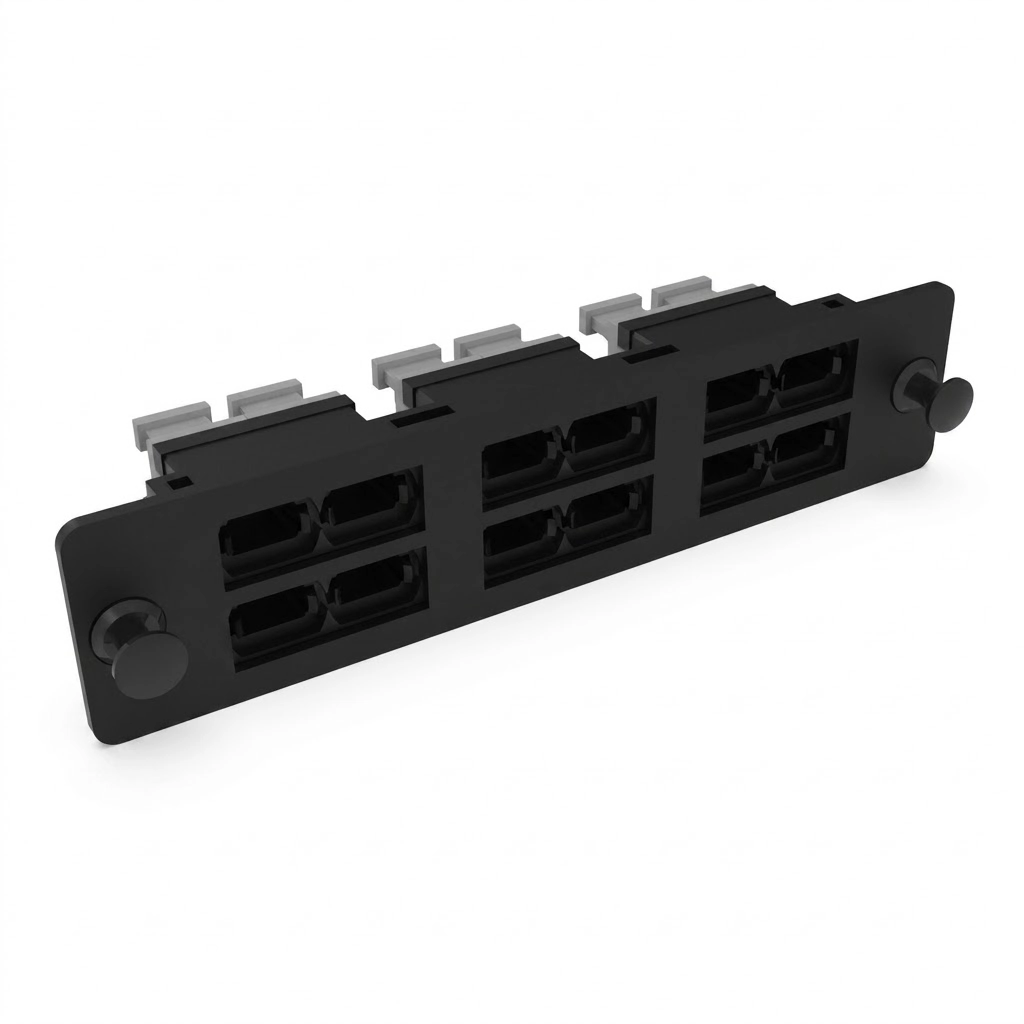

The MPO adapter plate provides modular fiber connectivity for indoor high-density patch panels and wall mount enclosures. Designed around the standard LGX footprint, this fiber optic panel insert mounts with snap-in nylon latches to simplify structured cabling setups across enterprise networks and data centers.

This fiber adapter panel fits standard LGX footprint housings, supporting high-density trunk transitions in indoor optical distribution frames, rack mount patch panels, and wall boxes. The plate integrates recessed multi-fiber push-on adapters, which improve trunk cable bend clearance inside enclosures and maintain stable fiber routing.

Key Features

LGX Footprint Compatibility: Fits industry-standard LGX rack mount patch panels and wall mount enclosures. Enables quick snap-in deployment without complex mounting brackets.

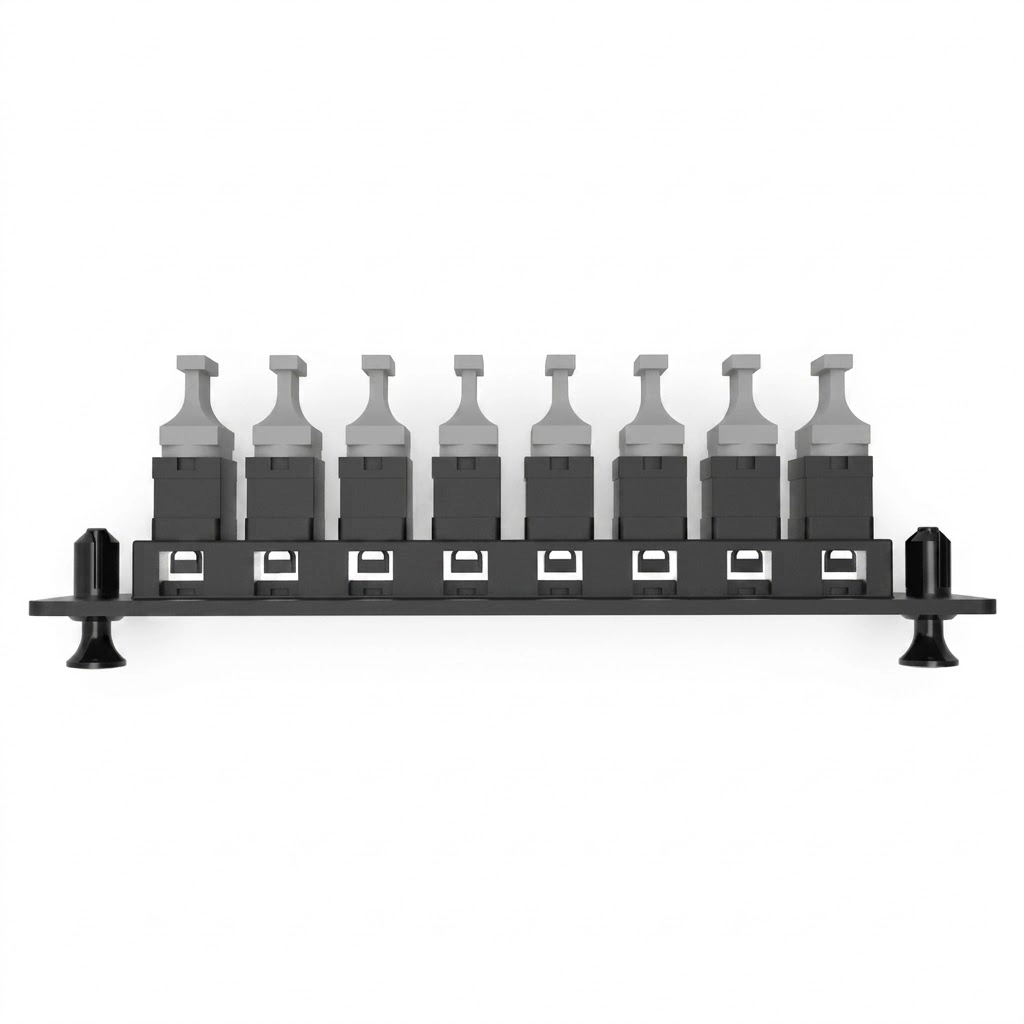

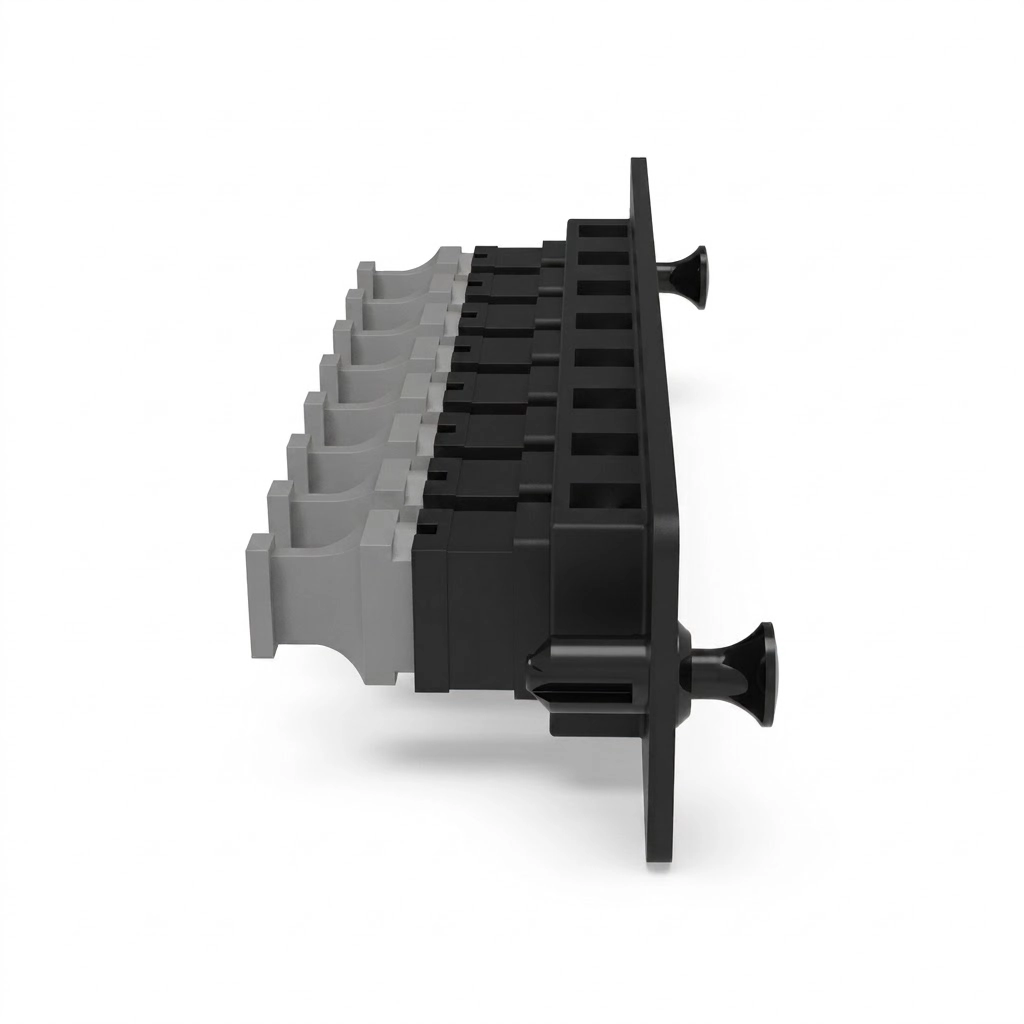

Recessed Adapter Design: Features recessed multi-fiber adapters. Improves trunk cable bending radius and protects fiber connectors inside crowded enclosures.
Flexible Polarity Configurations: Provides key-up to key-down and key-up to key-up alignment options. Supports proper polarity management for various multi-fiber trunk assemblies.
Integrated Dust Protection: Includes dedicated polycarbonate protective caps on each port. Prevents dust and debris from contaminating optical interfaces during transit and installation.
Lightweight Polymer Construction: Molded from PC + ABS engineering plastic. Delivers durable structural integrity at a low net weight of 0.1 kg.

Product Configuration

Port Capacities: Available in 8-port and 12-port configurations.
Adapter Polarity Orientation: Key-up to key-down (Opposite Keys) or key-up to key-up (Aligned Keys).
Mounting Mechanism: Dual snap-in nylon latches.
Housing Finish: Black.

Applications

Data Centers: High-density optical distribution frames, cross-connect fields, and main distribution areas.
Enterprise Local Area Networks: Backbone fiber patching inside equipment rooms and telecommunication closets.
Indoor Enclosures: Standard LGX-compatible 19-inch rack mount patch panels and wall mount termination units.

Selection Considerations

Port Density Requirements: Determine whether your trunk link density requires an 8-port or 12-port configuration per slot.
System Polarity Management: Match the key orientation (key-up to key-down versus key-up to key-up) with your planned structured cabling method (Method A, B, or C).
Enclosure Clearance: The recessed adapter profile helps maintain acceptable bend profiles inside shallow depth wall boxes and high-density patch panels.

FAQ

What enclosures fit this adapter plate?

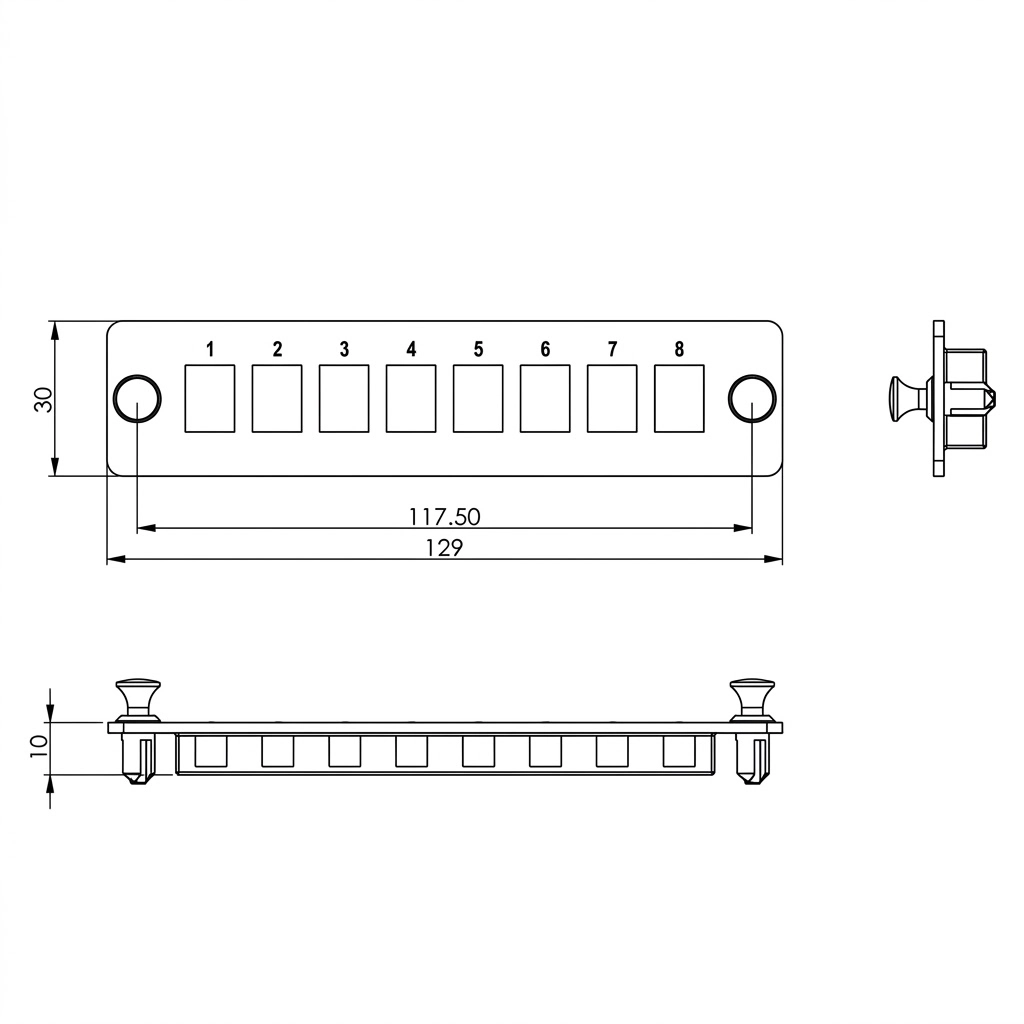

This plate fits standard LGX-compatible rack mount patch panels and wall mount boxes designed for 129 mm x 30 mm faceplate cutouts.

What is the purpose of the recessed adapter mounting?

Recessed adapters sit deeper into the panel faceplate, providing extra space for trunk cable boots and improving the bend radius of incoming trunk assemblies.

What keying options are available?

Plates can be configured with key-up to key-down or key-up to key-up adapter orientations to adapt to your trunk polarity design.

Conclusion

Deploying a modular LGX MPO adapter plate ensures clean cable management and proper polarity control across high-density fiber enclosures. Select your required port count and key orientation to match your current network architecture.
