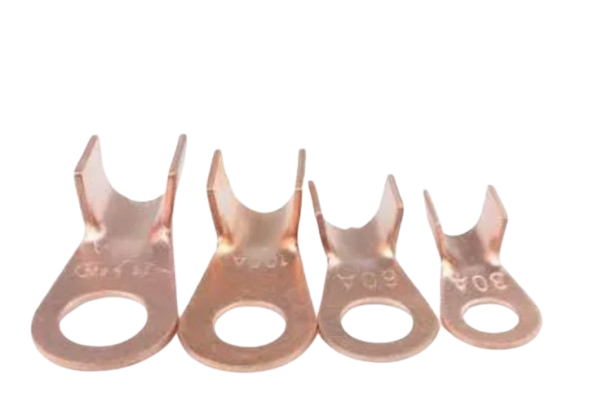

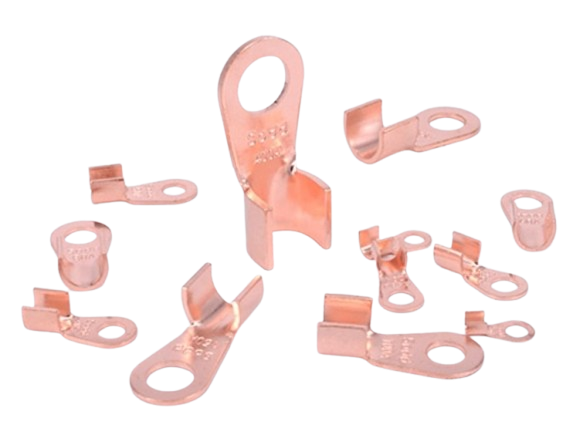

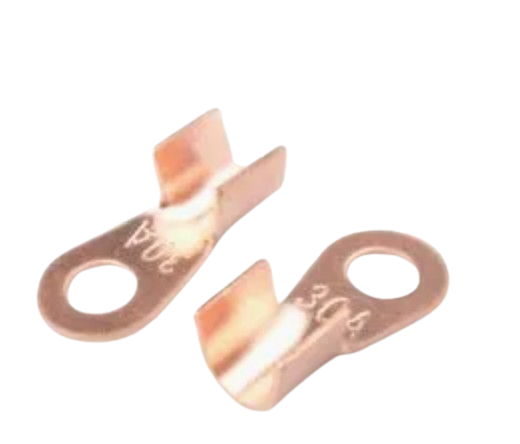

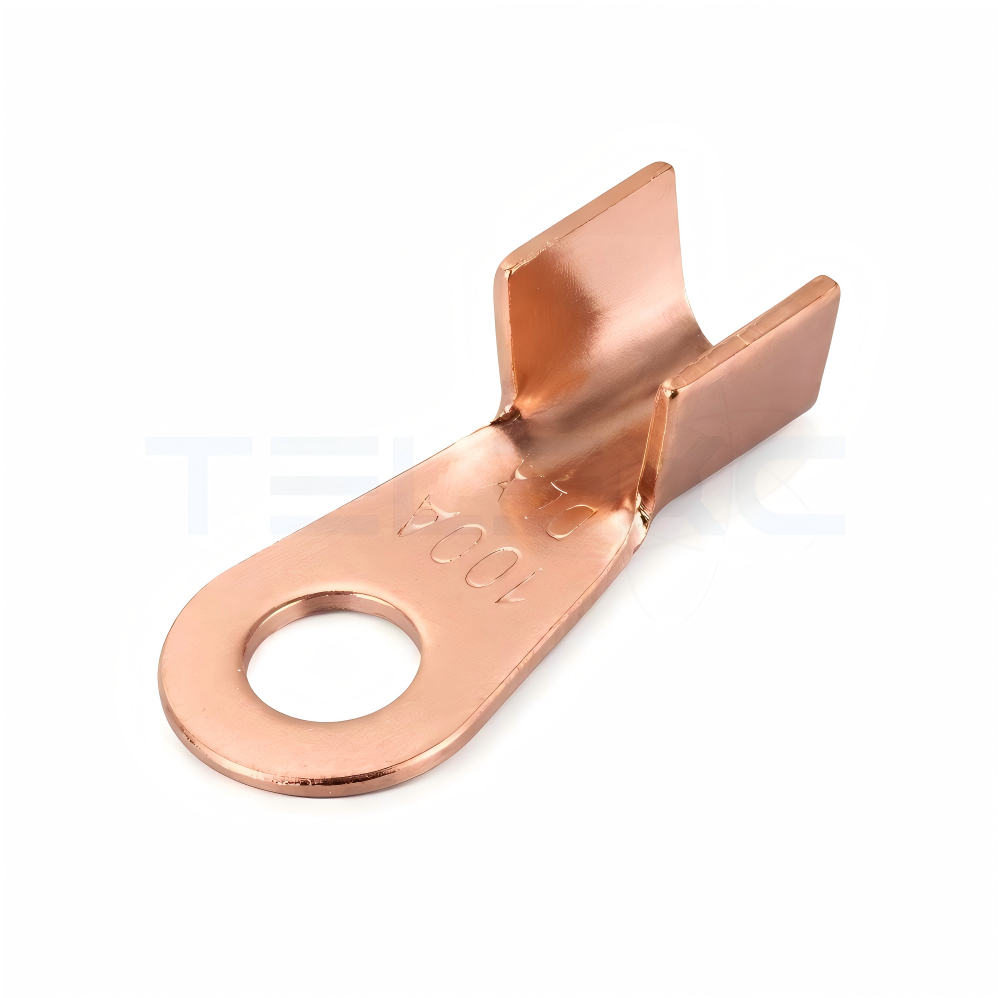

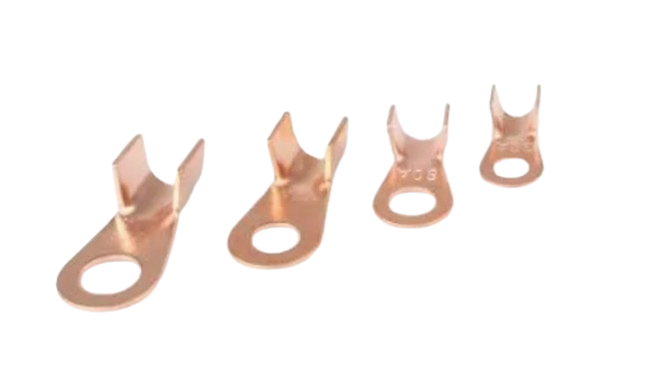

The OT Copper Lug is engineered for dependable electrical connections in control panels, appliances, electronics, and general-purpose wiring. Featuring a stamped copper open-barrel design, these lugs simplify wire insertion, provide excellent conductivity, and offer cost-effective solutions for a wide range of applications. Tin-plated finishes enhance corrosion resistance, ensuring long-lasting performance and secure electrical connections.
International Standard Compliance
-
Manufactured in accordance with IEC 61238-1 for compression and crimping electrical connectors
-
Complies with RoHS for environmental safety
Construction & Materials
-
Material: High-quality copper, tin-plated for corrosion resistance
-
Design: Open-barrel stamped construction
-
Finish: Smooth, uniform plating to ensure long-term reliability
Installation Guide
-
Strip conductor insulation to slightly longer than barrel length.
-
Insert conductor into open U-shaped barrel, ensuring all strands are contained.
-
Select an appropriate crimping tool (indent-style or F-crimp).
-
Position lug in tool and compress to form a secure crimp.
-
Inspect crimp visually and perform a gentle pull test.
-
Mount the lug’s flat palm onto the terminal point using a correctly sized bolt or screw.
Product Advantages
-
Reliable electrical connectivity
-
Easy installation with open barrel design
-
Corrosion-resistant for longer service life
-
Cost-effective solution for standard electrical terminations
-
Wide range of sizes and ratings for versatile use
OT Copper Lugs by Telexc are high quality, Open barrel design, tin-plated, durable, ideal for control panels, appliances, and electronics.
