PVC Flexible Metal Conduit | Steel PVC Cable Protection | Telexc

PVC Coated Flexible Metal Conduit for Cable Protection | Telexc

Key Features

  • Flexible Design: Easily bends for complex routing installations.
  • Dual-Layer Protection: Steel core + PVC coating for maximum durability.
  • Waterproof & Insulated: Suitable for outdoor and damp environments.
  • Corrosion Resistant: Performs well in industrial and chemical settings.
  • Wide Size Range: Supports various cable diameters and applications.
  • Material: Galvanized Steel Core + PVC Coating
  • Temperature Range: -10°C to +80°C
  • Fire Rating: UL94-V0
  • Color Options: Black / Gray
  • Bending Property: High flexibility
Categories: , Tags: , , , , , , , , , , , , , ,

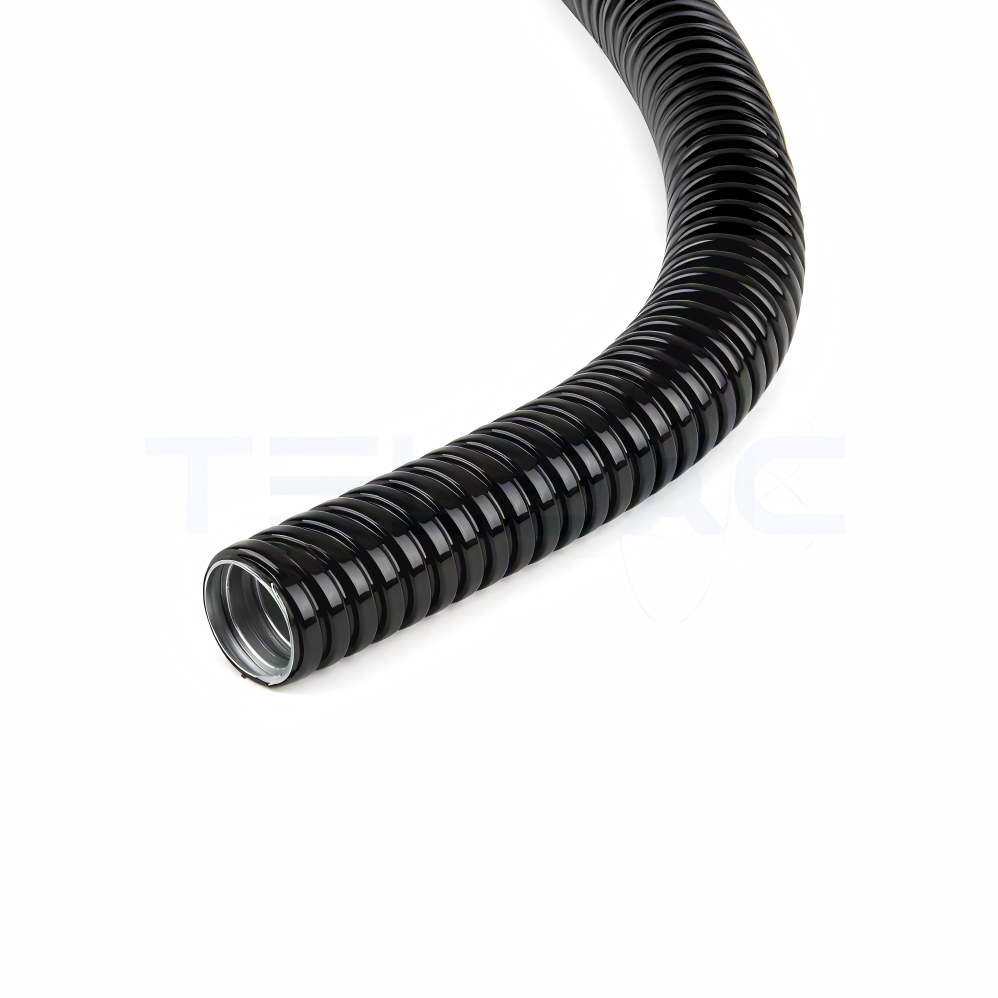

Telexc PVC flexible metal conduit is designed to deliver reliable cable protection in demanding electrical and industrial environments. Built with a galvanized steel inner core and a durable PVC outer coating, this conduit provides a strong combination of mechanical strength, flexibility, and environmental resistance. It is widely used to safeguard wiring systems from moisture, dust, corrosion, and physical damage.

The PVC flexible metal conduit offers excellent bending performance, making it easy to install in tight spaces and complex routing paths without compromising cable integrity. Its UV-resistant and anti-aging PVC layer ensures long-term performance in outdoor and exposed installations, while the inner steel structure enhances impact resistance and load-bearing capability.

Engineered for versatility, this PVC flexible metal conduit is suitable for applications across power distribution, industrial machinery, transportation infrastructure, and building systems. It not only improves cable lifespan but also enhances safety by providing insulation and fire-resistant properties. With its robust construction and long service life, it serves as a cost-effective solution for modern cable management needs.

International Standard Compliance
  • Manufactured in accordance with ISO 9001 Quality Management System
  • Fire resistance compliant with UL94-V0 standards
  • Material options can meet RoHS compliance requirements
  • Suitable for installations following international electrical safety practices

Construction & Materials

  • Inner Layer: Galvanized steel strip with insulation treatment ensures strength and conductivity shielding.
  • Outer Layer: PVC coating provides UV resistance, anti-aging properties, and environmental protection.

Installation Guide

  • Cut conduit to the required length using appropriate tools.
  • Insert cables smoothly without excessive force.
  • Secure using compatible fittings and clamps.
  • Ensure tight sealing at joints for waterproof performance.
  • Avoid over-bending beyond the recommended radius.

Technical Parameters

Model No. Size (mm) Size (inch) Outer Diameter (mm) Natural Curve (mm) Packing (M)
TX-PFC06 6 3/16″ 9.0 ±0.25 40 200
TX-PFC08 8 1/4″ 11.8 ±0.30 45 100
TX-PFC10 10 5/16″ 14.5 ±0.30 55 100
TX-PFC12 12 — 16.5 ±0.35 60 100
TX-PFC16 16 1/2″ 21.2 ±0.35 85 100
TX-PFC20 20 3/4″ 25.5 ±0.40 100 50
TX-PFC25 25 1″ 31.7 ±0.45 120 50
TX-PFC32 32 1-1/4″ 39.6 ±0.50 150 25
TX-PFC38 38 1-1/2″ 46.6 ±0.60 180 25
TX-PFC51 51 2″ 59.5 ±1.00 220 20

Applications

Power Distribution Systems

Used to protect cables in low and medium-voltage electrical networks, ensuring safe energy transmission.

Industrial Machinery

Provides durable cable protection in vibrating and high-load machine environments.

Outdoor Installations

Ideal for exposed installations due to UV resistance and waterproof properties.

Transportation Infrastructure

Widely applied in railways, tunnels, and traffic systems for secure wiring.

Commercial & Residential Buildings

Ensures safe cable routing in buildings, HVAC systems, and utility installations.

Product Advantages

Superior Flexibility

Allows easy installation in tight or complex layouts without damaging cables.

Enhanced Durability

Galvanized steel core ensures long-lasting mechanical protection.

Weather Resistance

PVC coating protects against UV, moisture, and harsh environmental conditions.

Safety Assurance

Provides insulation and fire resistance for secure cable management.

Cost-Effective Solution

Reduces maintenance and replacement costs due to extended service life.

FAQs

1. What is PVC-coated flexible conduit used for?
It is used to protect electrical wires and cables from mechanical damage, moisture, and environmental exposure.

2. Is this conduit suitable for outdoor use?
Yes, the PVC coating provides UV resistance and waterproof protection.

3. What temperature range can it handle?
It operates effectively between -10°C and +80°C.

4. Can it be used in industrial environments?
Yes, it is ideal for factories, machinery, and chemical industries.

5. Is the conduit fire-resistant?
Yes, it meets UL94-V0 fire resistance standards.

6. What sizes are available?
Available from 6mm to 100mm (metric) and corresponding inch sizes.

7. Does it support tight bending?
Yes, it has excellent flexibility, but it should follow the recommended bending radius.

8. What colors are available?
Typically available in black and gray.

Why Choose Telexc

Quality Manufacturing

Products are produced under strict quality control for consistent performance.

Wide Product Range

Comprehensive sizes and specifications to meet diverse project needs.

Reliable Performance

Designed for long-term use in demanding environments.

Customization Support

Flexible options available for specific project requirements.

Global Standards Compliance

Meets international safety and performance benchmarks.
