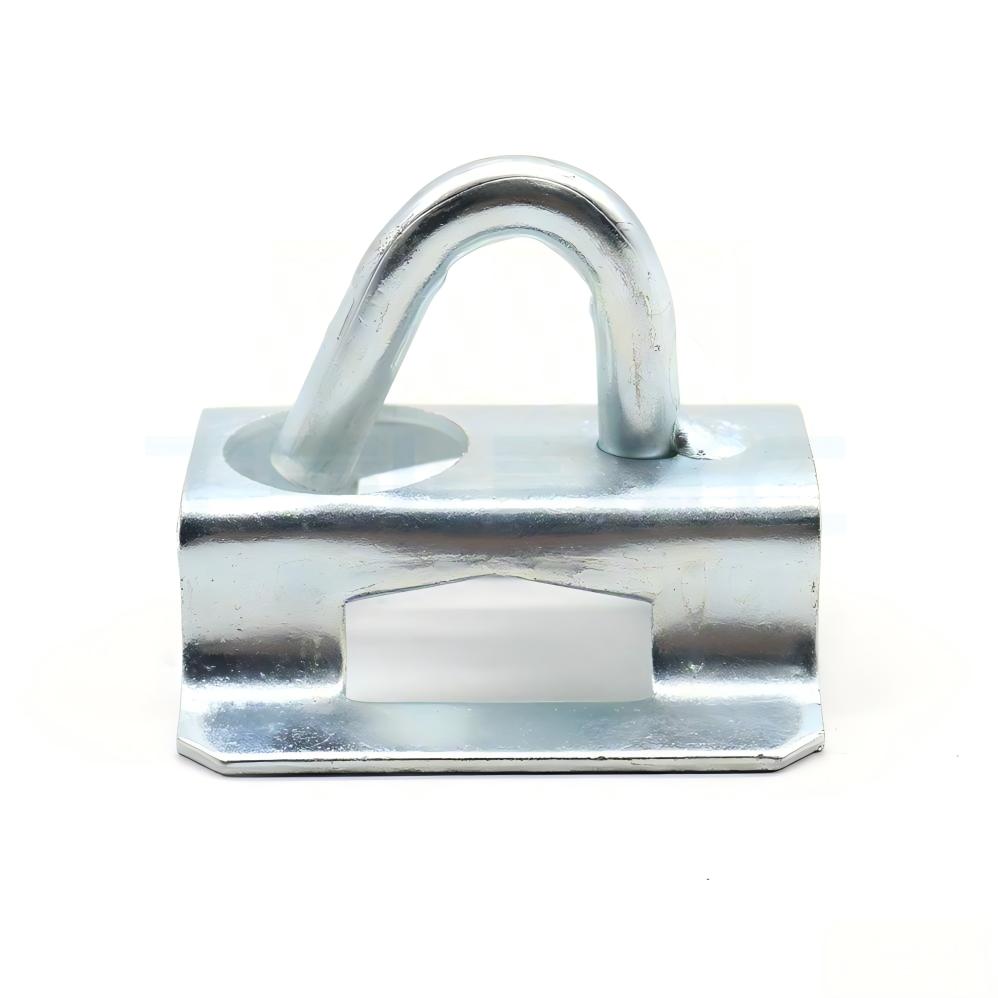

TX-HR05 Hoop Retractor Pole Bracket for FTTH Fiber Optic Cable

TX-HR05 Hoop Retractor Pole Bracket for FTTH Fiber Optic Cable

Key Features:

  • High tensile strength and environmental stability

  • Supports both indoor and outdoor FTTH installations

  • Facilitates flexible cable layout scenarios

  • Strong corrosion, acid, and alkaline resistance

  • Simple installation for single-person construction

  • Wide range of messenger diameters supported

  • Durable and reliable in rural and urban environments

  • Reduces obstacles from external influences

Category: Tags: , , , , , , ,

The TX-HR05 Hoop Retractor is engineered for FTTH fiber optic cable installations, providing reliable support for both indoor and outdoor applications. Made from high-quality galvanized steel, it securely fastens drop cables to poles, walls, or other supports, offering high tensile strength and environmental stability. Its lightweight, compact, and rugged design ensures easy single-person installation, long-term durability, and compatibility with a wide range of messenger diameters. The retractor facilitates flexible cable layouts, connects overhead fiber cables to optical devices or house attachments, and provides strong resistance to corrosion, acid, and alkalinity, making it durable and reliable in both rural and urban environments while reducing obstacles caused by external influences.

International Standard Compliance:

  • Compliant with international FTTH installation standards

  • Tested for high tensile strength and environmental durability

Construction & Materials:

  • Body: Hot-dip galvanized steel for durability and rust resistance

  • Fastening: Compatible with wedge anchors, steel wire anchors, and S-shaped fasteners

  • Design: Pigtail-type open hook for self-locking and easy installation

Installation Guide:

  1. Mount the bracket to the building wall or pole using appropriate screws.

  2. Attach the drop wire clamps or support wires to the hook.

  3. Ensure correct alignment and rotation (90° for splint hooks).

  4. Secure cables and check stability.

Durable Hoop Retractor TX-HR05 for FTTH fiber optic cable with galvanized steel pole bracket hooks offers easy installation for indoor and outdoor use.

Technical Parameters

Parameter Specification
Material Hot-dip Galvanized Steel
Hook Type J-type / Open Hook Pigtail
Application FTTH Drop Cable / Fiber Optic Cable
Weight Light-weight
Installation Screw mounting on the wall or pole
Corrosion Resistance High
Suitable Messenger Diameter Range supported

Applications:

  • Used in drop cable installations as an attachment to the strand for accepting drop wire clamps or wrapping support wires.

  • Suitable for building external wall installation using screws and J-type fixing parts.

  • Provides cable entrance protection, prevents insect intrusion, and ensures dust-free cable exit or entry points.

  • Applicable in various fiber optic systems for efficient line assembly, disassembly, and relocation.

Product Advantages:

  • Fast and tool-independent installation

  • Enhances cable management and tension relief

  • Durable for outdoor and rural environments

  • Improves construction efficiency and reduces external obstacles

FAQs:

Q: Can this bracket be used for indoor installations?
A: Yes, it supports both indoor and outdoor FTTH installations.

Q: What type of cable does it support?
A: Compatible with all standard FTTH drop fiber optic cables.

Q: Is the installation tool-dependent?
A: No, the bracket features a self-locking hook design, allowing single-person installation without specialized tools.

Q: How does it protect the cable from environmental factors?
A: Made from hot-dip galvanized steel, it resists corrosion, acid, and alkaline exposure, and prevents dust and insects from entering cable exit points.

Q: Can it be used with different types of messenger wires?
A: Yes, it supports a wide range of messenger diameters for flexible deployment.

Q: Does it relieve tension on drop cables?
A: Yes, it provides cable take-offs along the span and reduces stress on the drop cable for safer installations.

Q: Is it suitable for rural or harsh outdoor environments?
A: Absolutely, the galvanized steel construction ensures durability and reliability even in rural or extreme weather conditions.
