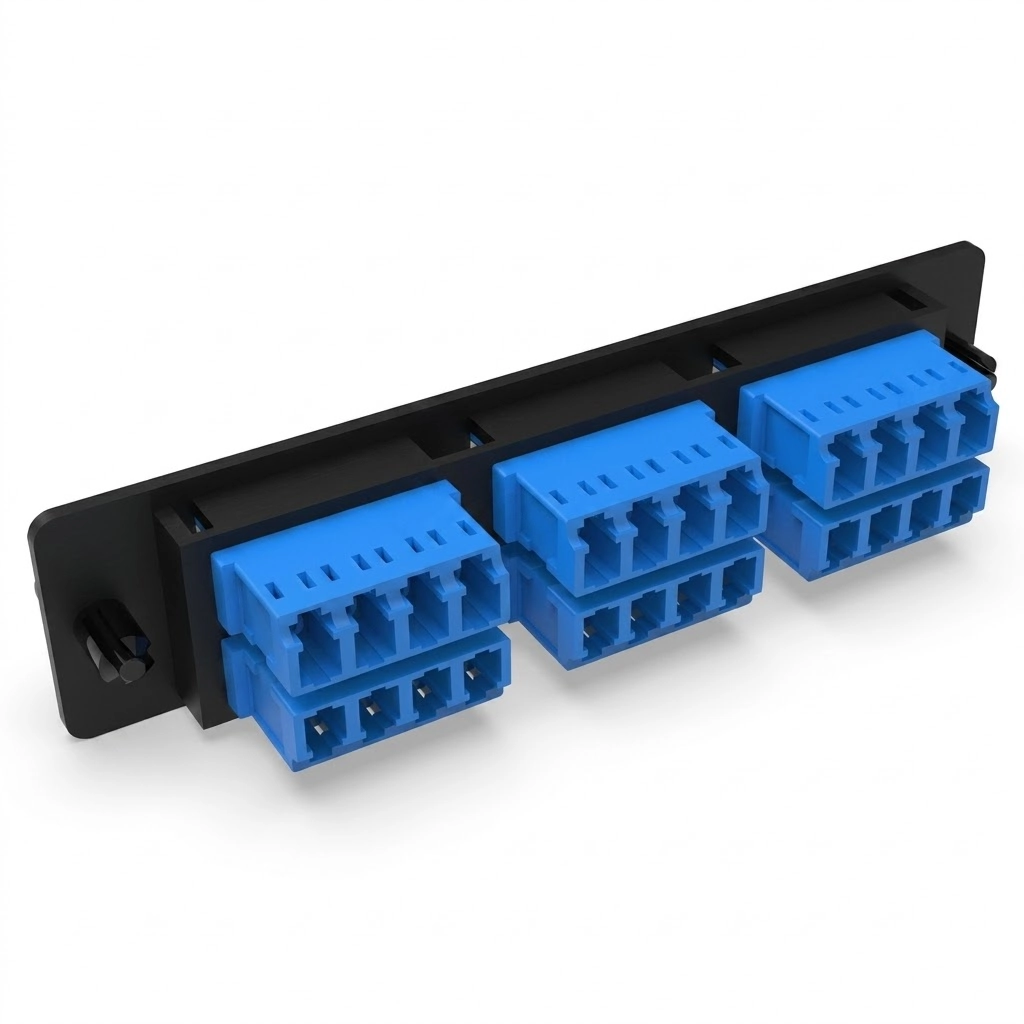

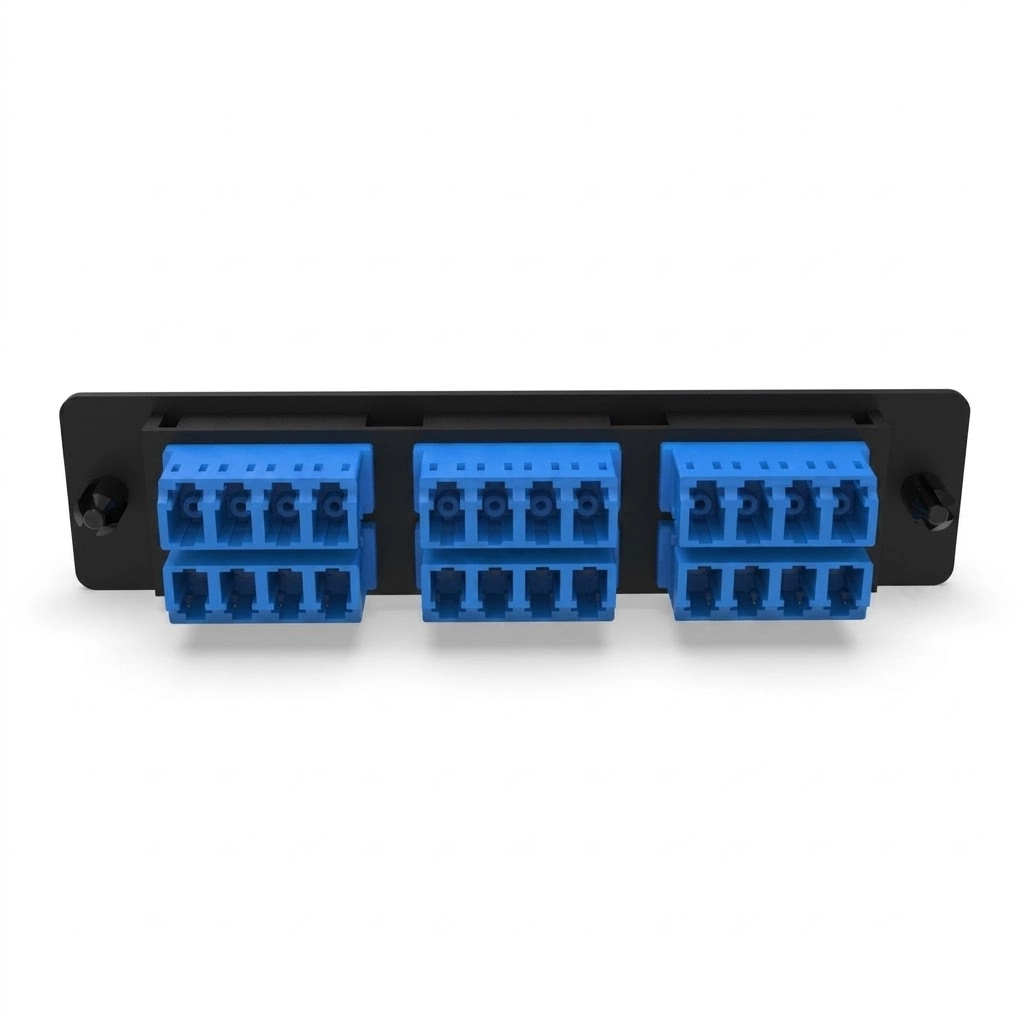

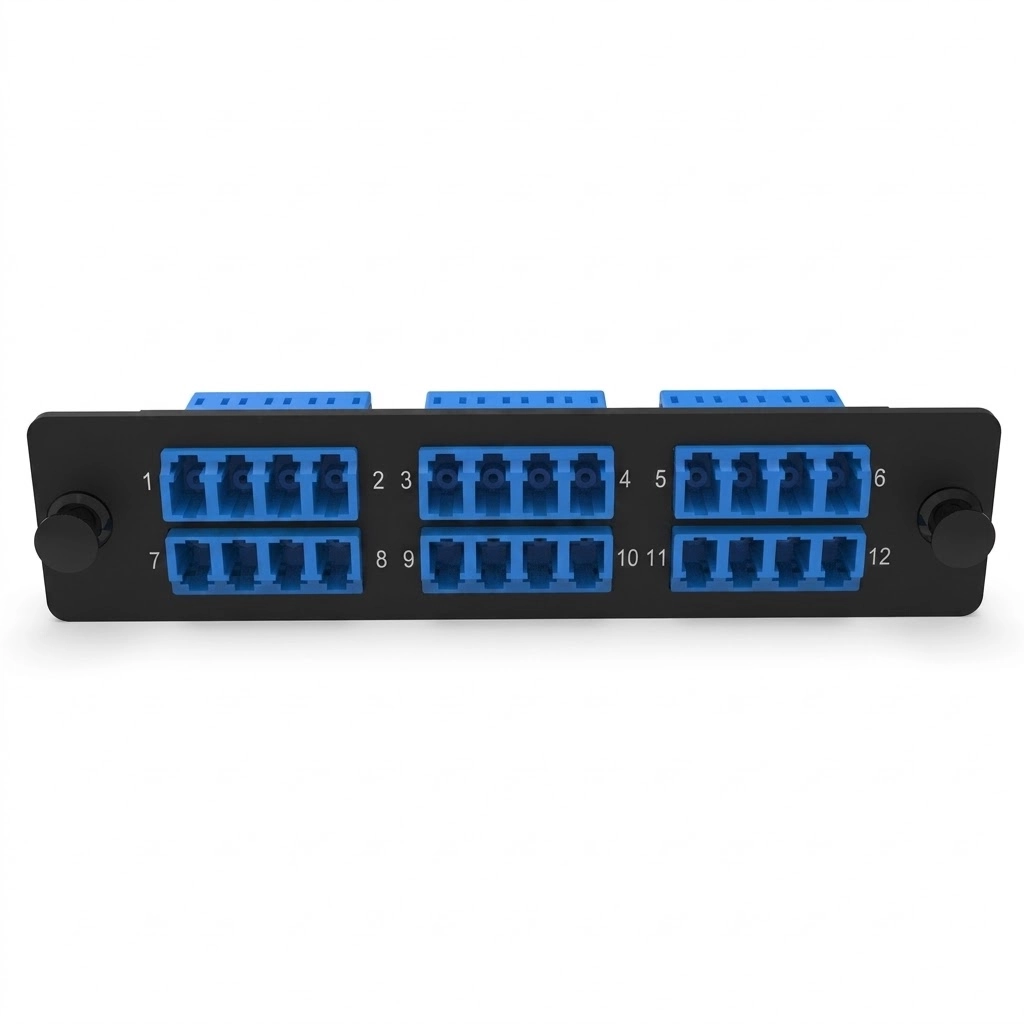

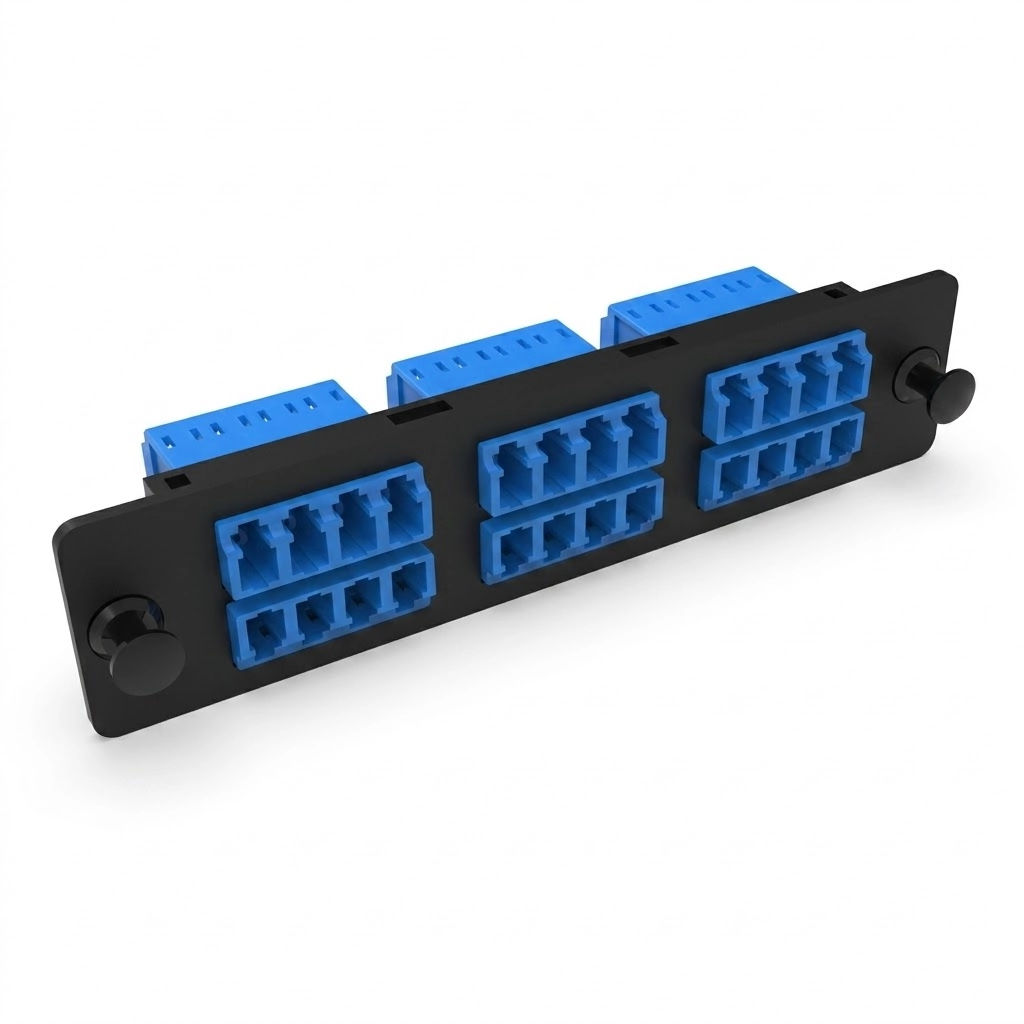

Universal Fiber Optic Patch Panel Adapter Plates
This Universal fiber adapter plate fits standard modular enclosures, including rack mount panels, wall mount enclosures, and variable fiber management frames. The footprint supports multiple connector options like LC, SC, ST, FC, and MPO to meet modern cross-connect requirements.
Manufactured from lightweight plastic using a PC(polycarbonate) and ABS(acrylonitrile butadiene styrene) blend, the assembly features integrated nylon latches for fast tool-less installation and secure retention in compatible housings.
The unit provides an interface for indoor data centers and enterprise networks. Technicians mount the panel directly into compatible hardware to organize high-density fiber connections. Because it uses the common industry footprint, network managers can standardize hardware across diverse cross-connect sites.

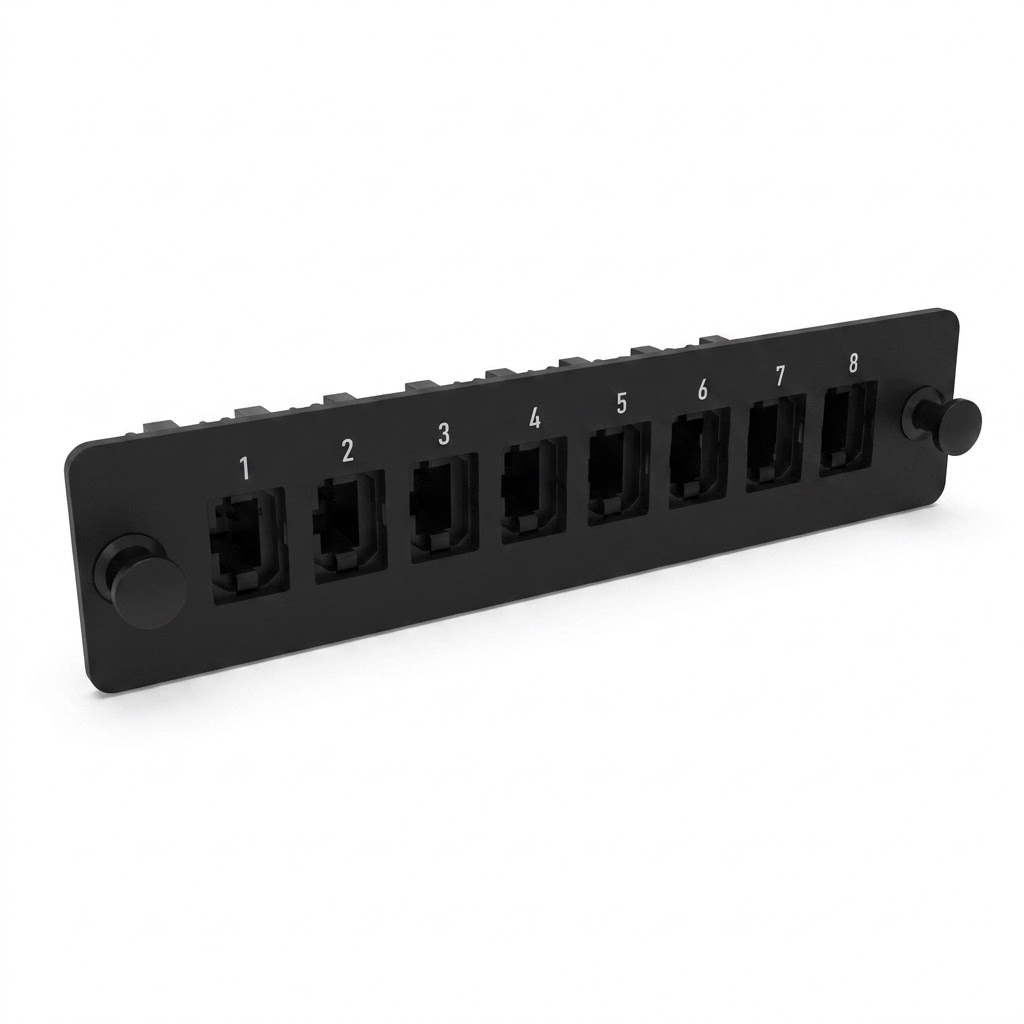

Fiber Optic Keystone Adapter Panel 8 Port MPO

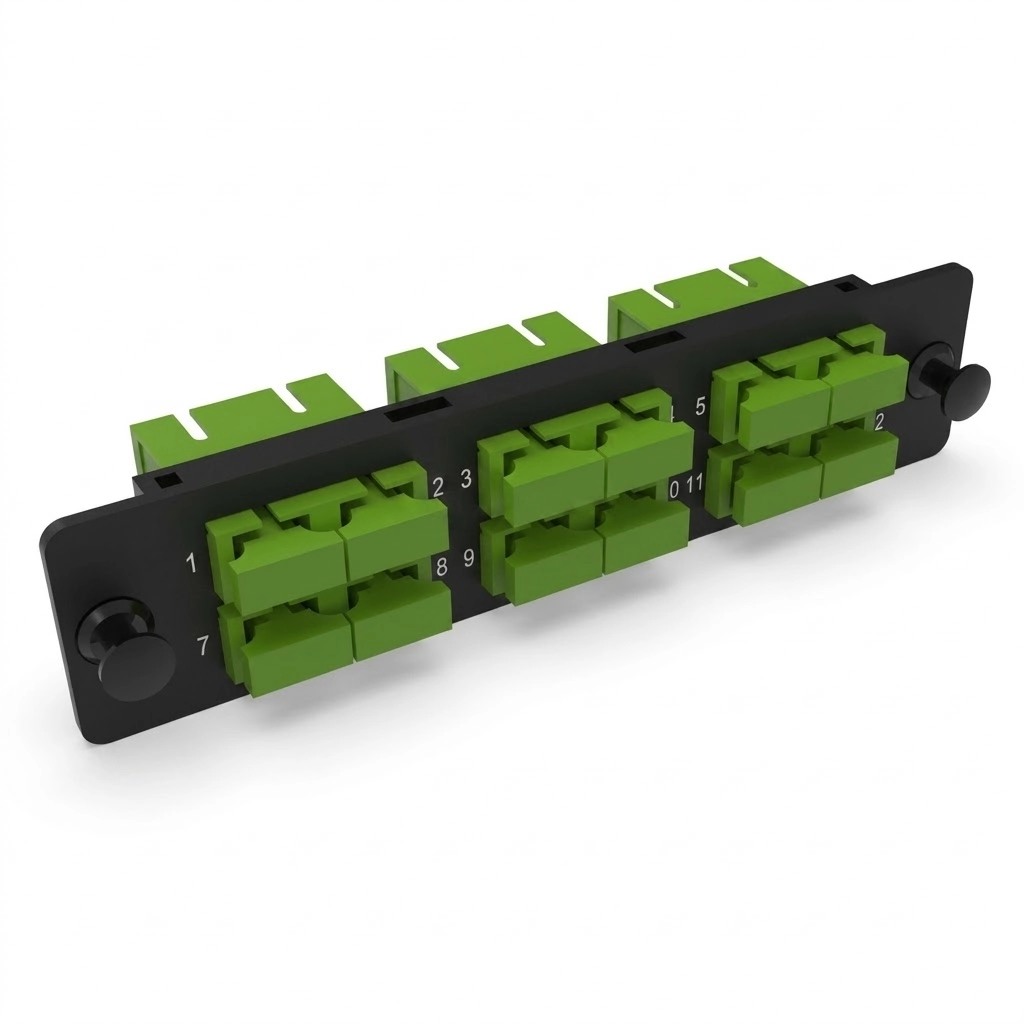

12 Port SC Adapter Panel

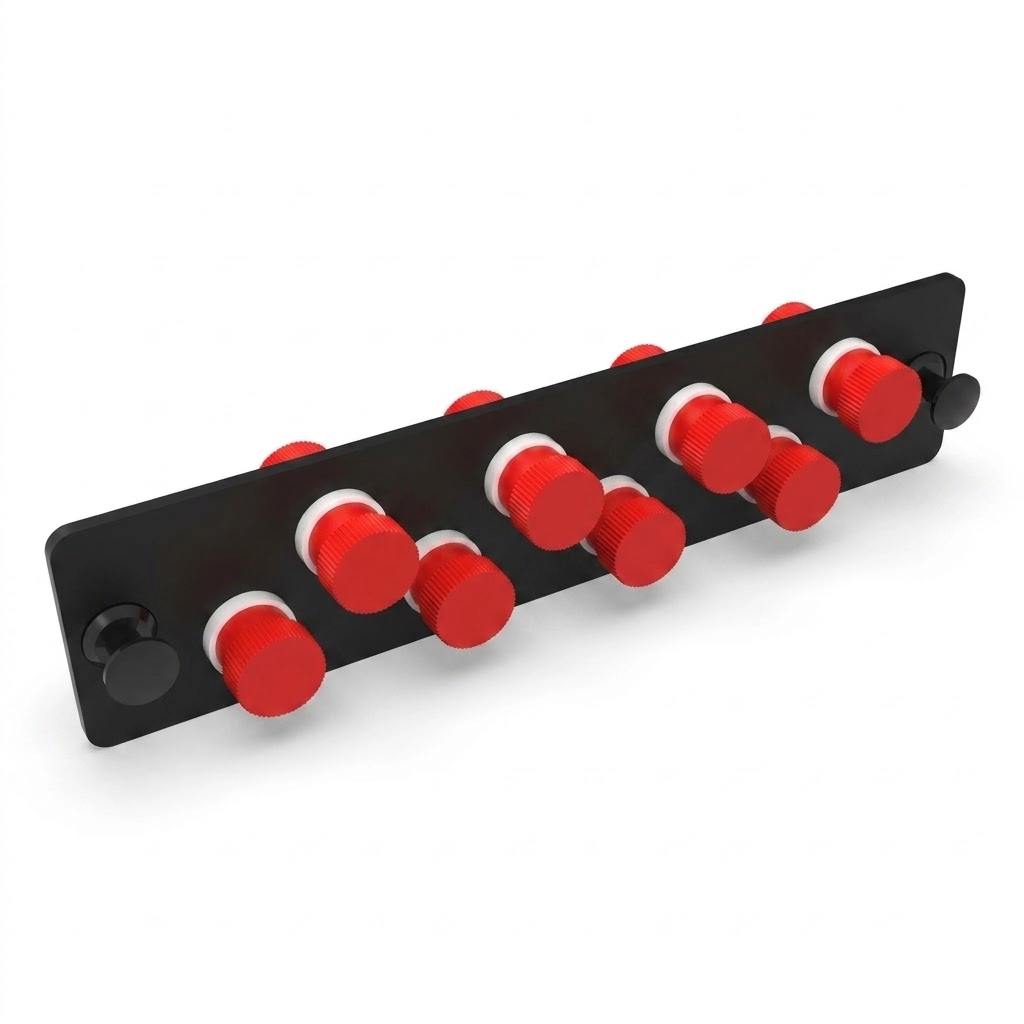

8 Port ST Adapter Panel
Key Features
-
Universal Footprint: Matches standard modular fiber management solutions. This design ensures broad compatibility across existing infrastructure housings.
-
Connector Options: Accommodates multiple thru adapter configurations, including LC, SC, ST, FC, and MPO options. This flexibility supports high-density network patching.
-

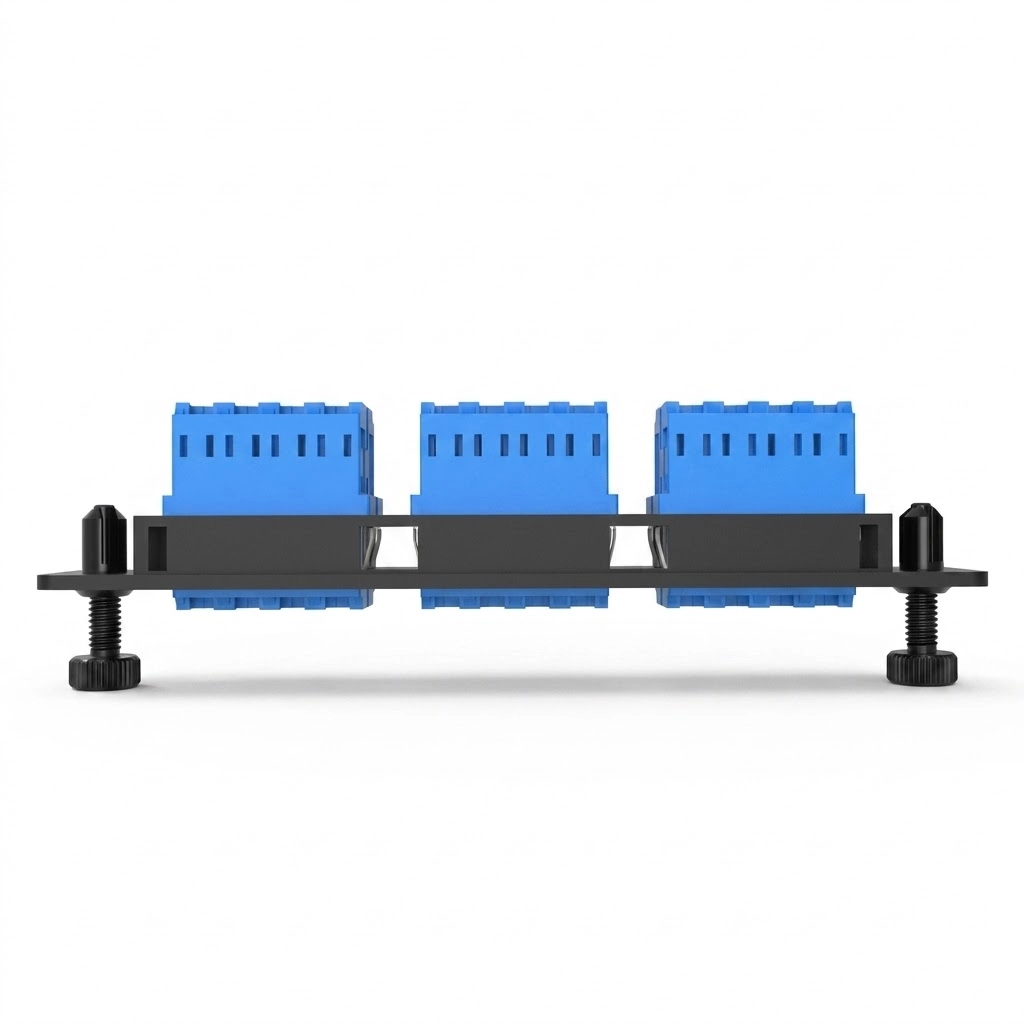

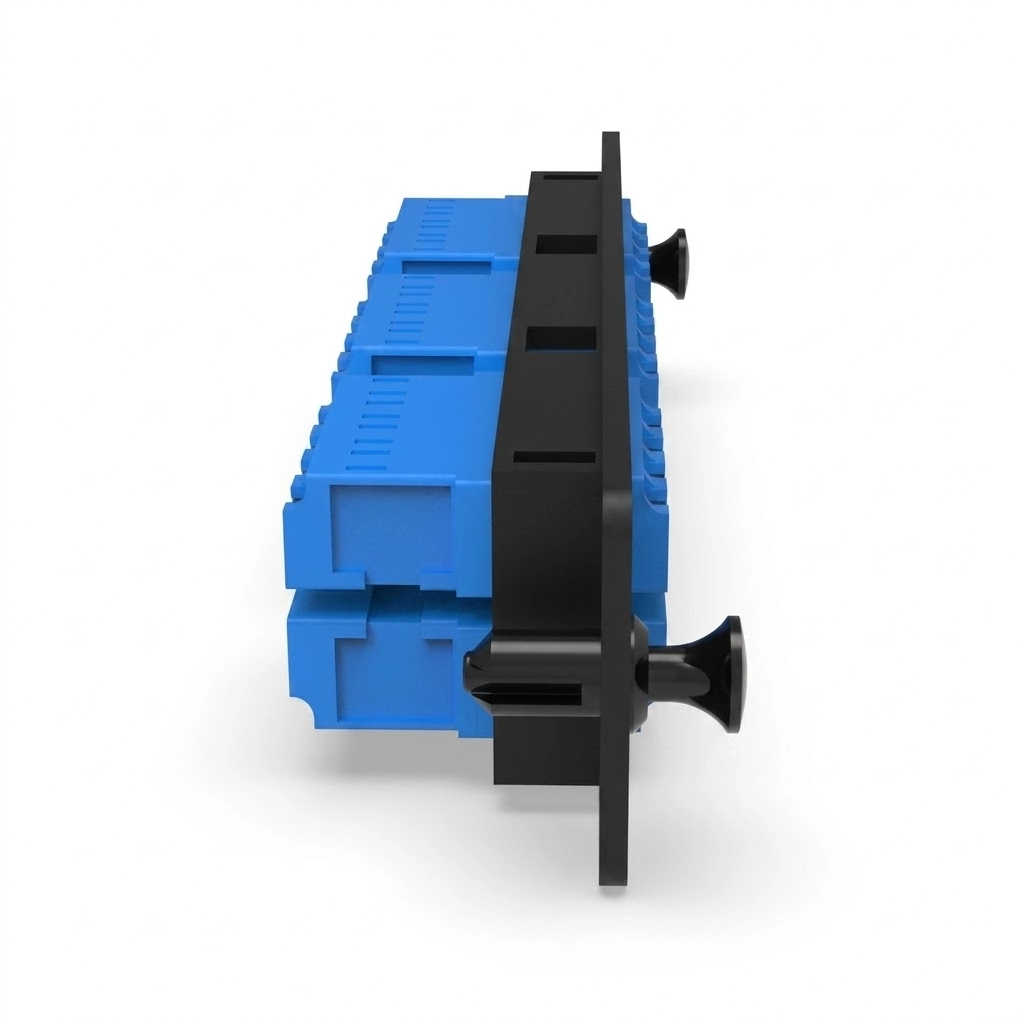

Fast Installation: Equipped with integrated nylon latches that enable rapid mounting and removal without specialized tools.
-
Recessed Design: Features recessed adapter orientations for SC, LC, and MPO configurations to manage jumper bend radii effectively.
-
Lightweight Construction: Built from a durable polycarbonate and acrylonitrile butadiene styrene polymer blend, yielding a net weight of 0.1 kg per plate.
-

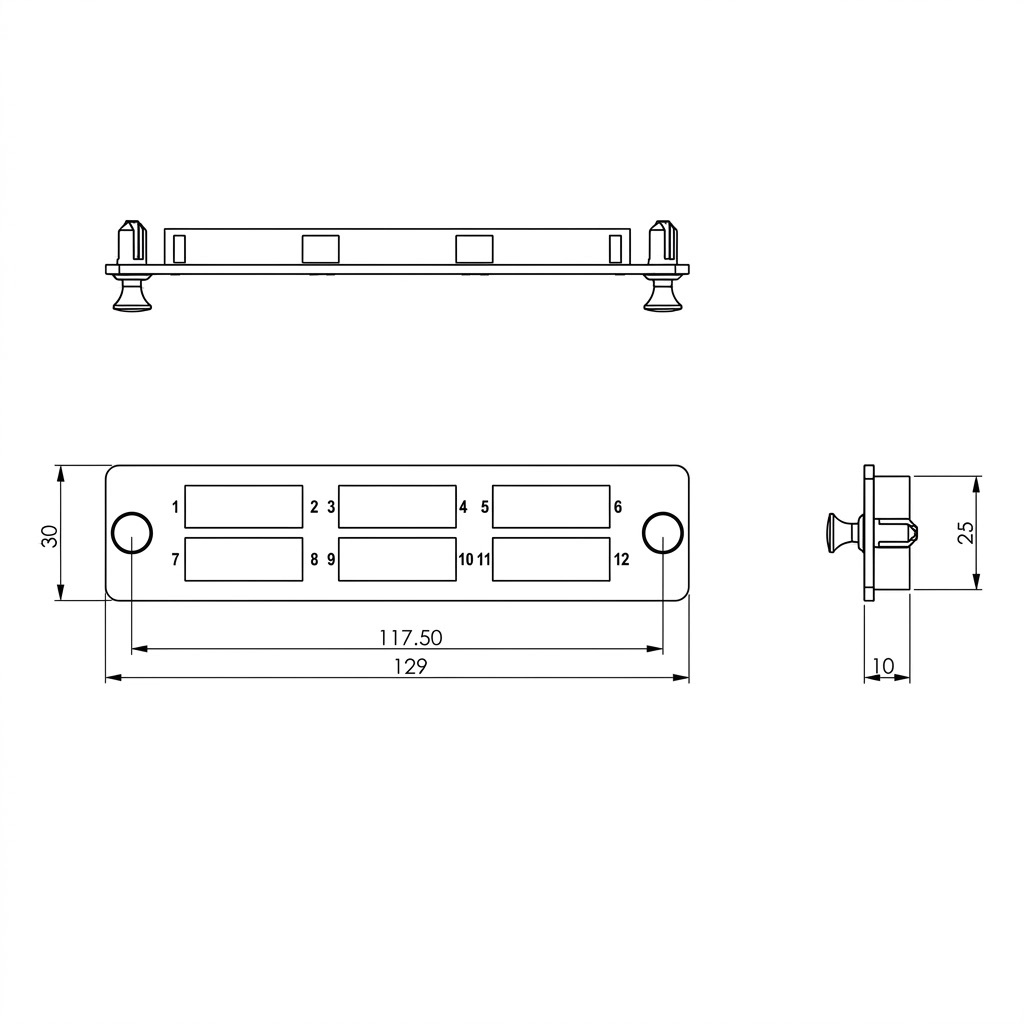

Physical Dimensions: Measures 129 mm in width by 30 mm in height.
-
Housing Finish: Finished in black for standard telecommunication rack aesthetics.
Applications
-
Enterprise local area networks and campus backbones
-
Data center cross-connect cabinets and distribution frames
-
Indoor rack mount and wall mount fiber patch panels
Before order placement, verify panel dimensions against the 129 x 30 mm cutout on your host panel. Match the selected thru adapter interface with your existing jumper types, including SC, LC, ST, FC, or MPO. Also confirm that the operating space fits an indoor, non-sealed hardware deployment.
FAQ
What enclosures are compatible with this adapter plate?
The plate fits standard modular fiber management solutions designed around the common footprint, including rack mount panels, wall mount enclosures, and variable fiber management systems.
What materials are used in the construction?
The housing is constructed from a polycarbonate and acrylonitrile butadiene styrene blend, utilizing nylon latches for mounting.
Does this plate support multi-fiber push-on connectors?
Yes, the design supports MPO and MTP adapter options alongside standard single-fiber connectors like LC, SC, ST, and FC.
Modern enterprise networks and data centers require modular fiber management systems that deploy rapidly and scale without friction.This modular fiber adapter plate provides a lightweight, secure routing interface for enterprise networks and data centers. By utilizing a standard universal footprint and integrated nylon latches, the unit enables rapid deployment within existing rack and wall mount enclosures while supporting high-density LC, SC, ST, FC, and MPO connectivity.
