The optical cross-connection Cabinet , also called OCC,Optical Distribution Cabinet (ODC) or Fiber Distribution Terminal (FDT). This product is designed for the connection between the Optical fiber cable and the main points, and it is a kind of port device. It has the function of direct or indirect connection, coiling, storage, and dispatching on the fiber cable.typically used for indoor/outdoor cable management.

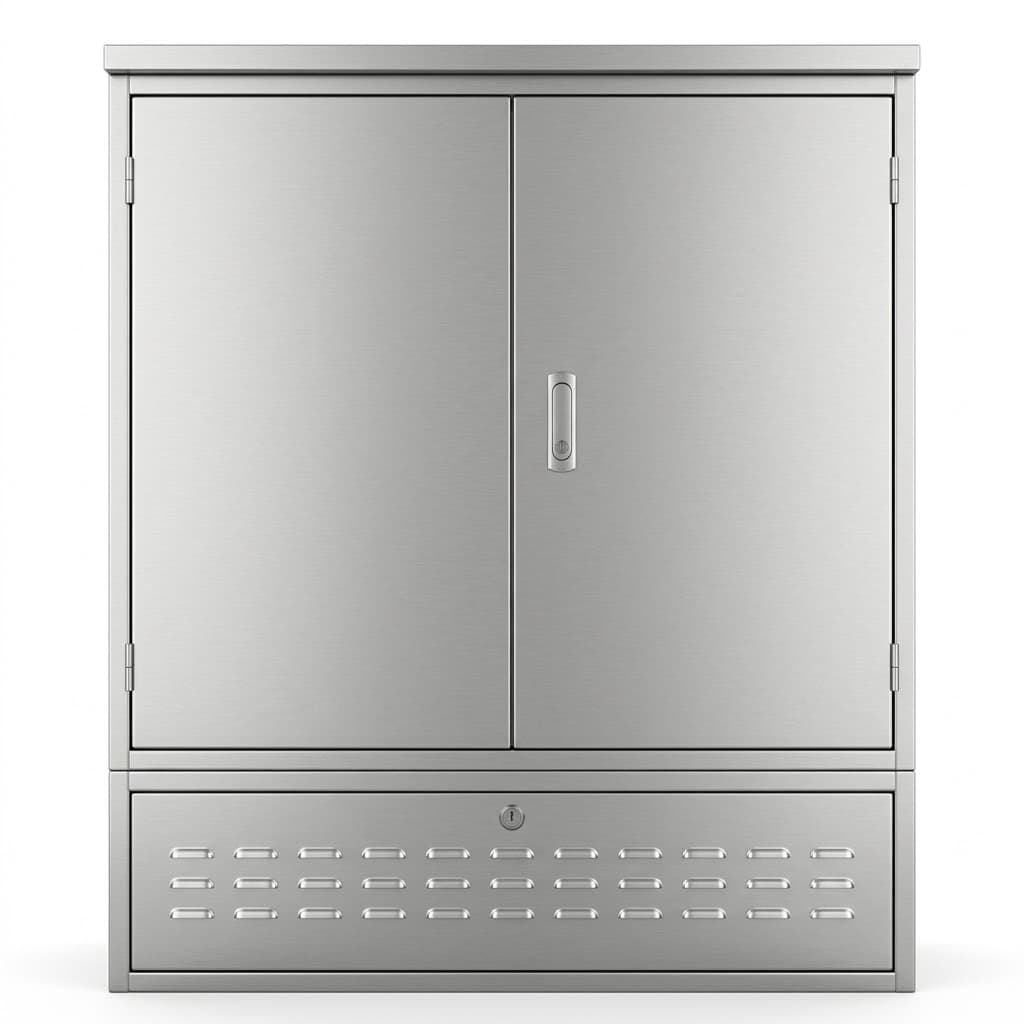

Cabinets are made of double-sided wire-drawn stainless steel, with the protection grade reaching IP65. Those can endure climate changes and harsh environments.

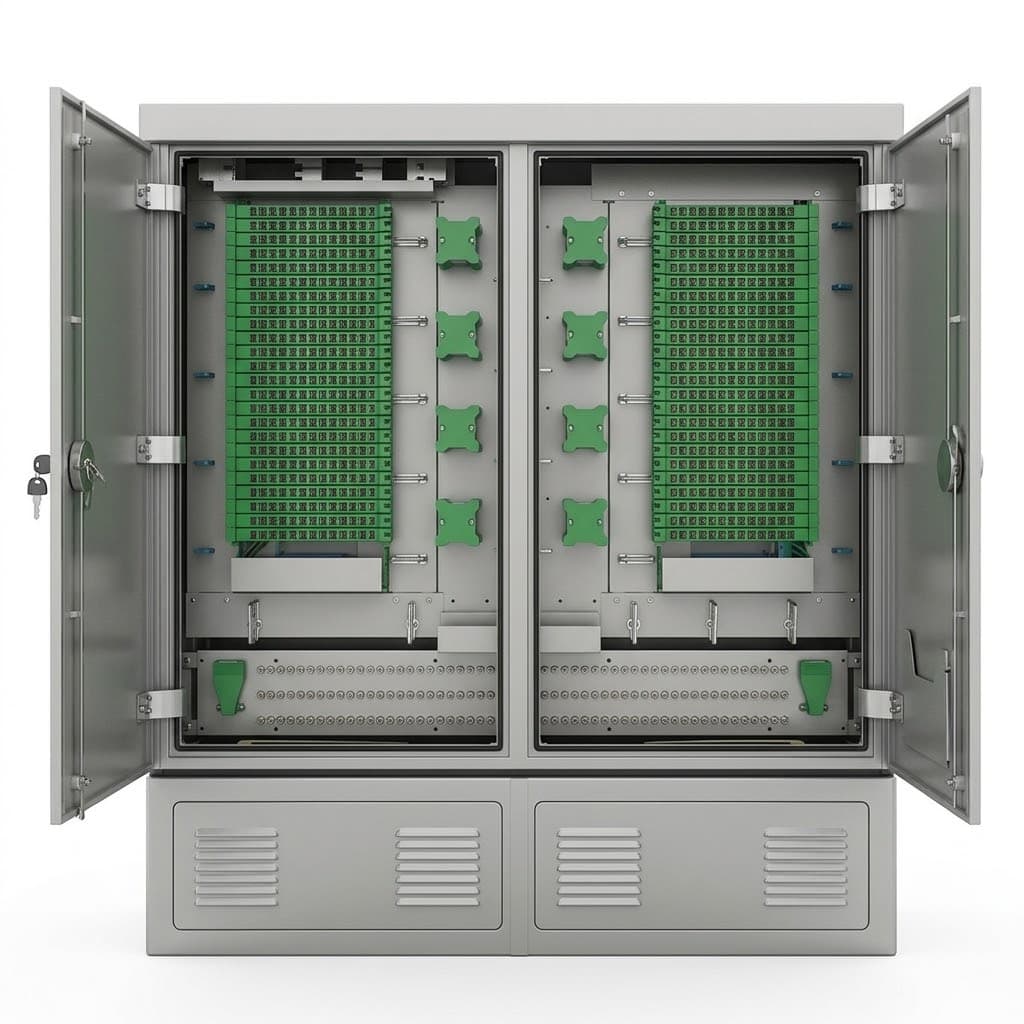

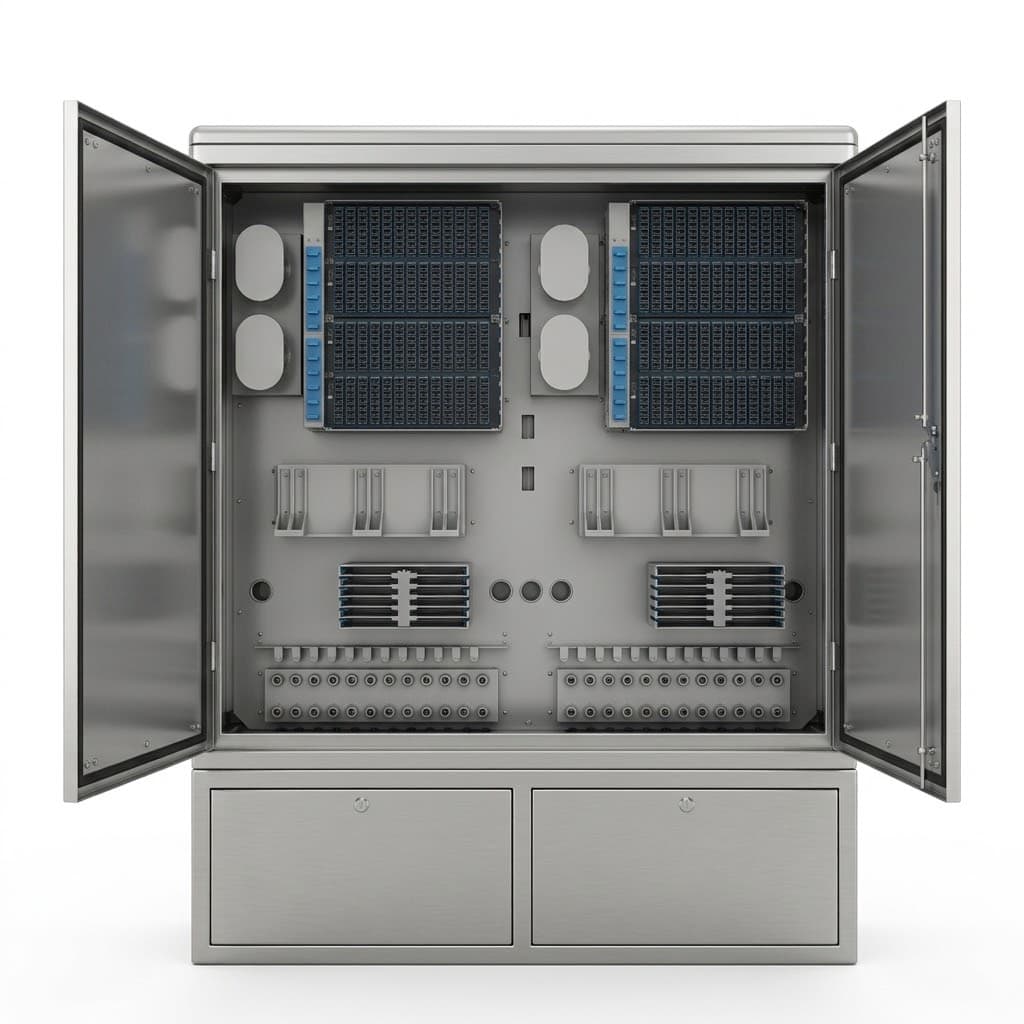

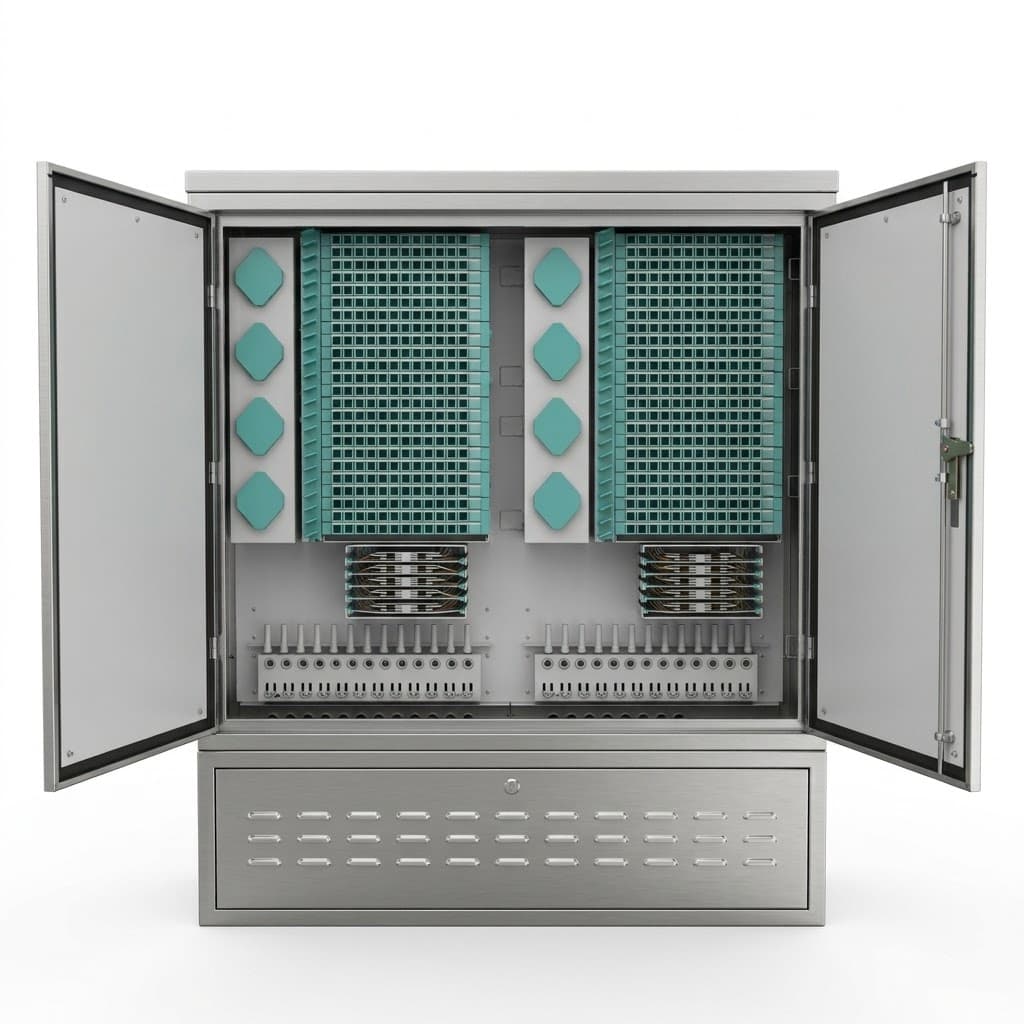

Cabinets are made with full front access. Modular design; Flexible configuration and quick installation ; Suitable for ribbon and no ribbon optic fibers;30 °oblique installation of adapters, preventing eyes from laser’s hurts and ensuring the fiber bending radius;
The optical cross-connection Cabinet suitable for inserting installation of SC, FC,ST(additional flange) adapters; The bending radii are ensured to be more than 40mm in anyplace. Reliable fiber introduction, grounding and fixing; Swpa convenient; Suitable fiber integrated and optical fibers; A special suspension mechanism is designed to enable ground mounted, wall-mounted or aerial for users ‘requirement.
Key Features

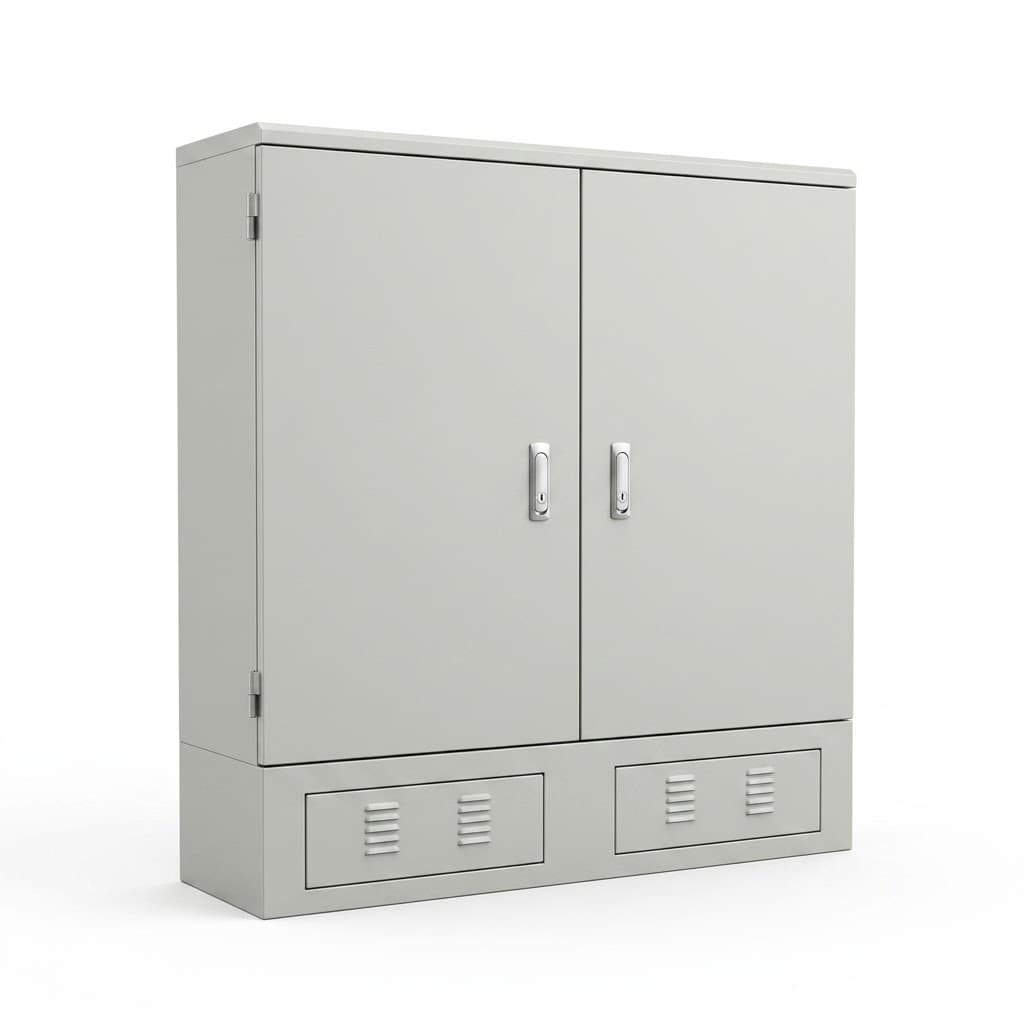

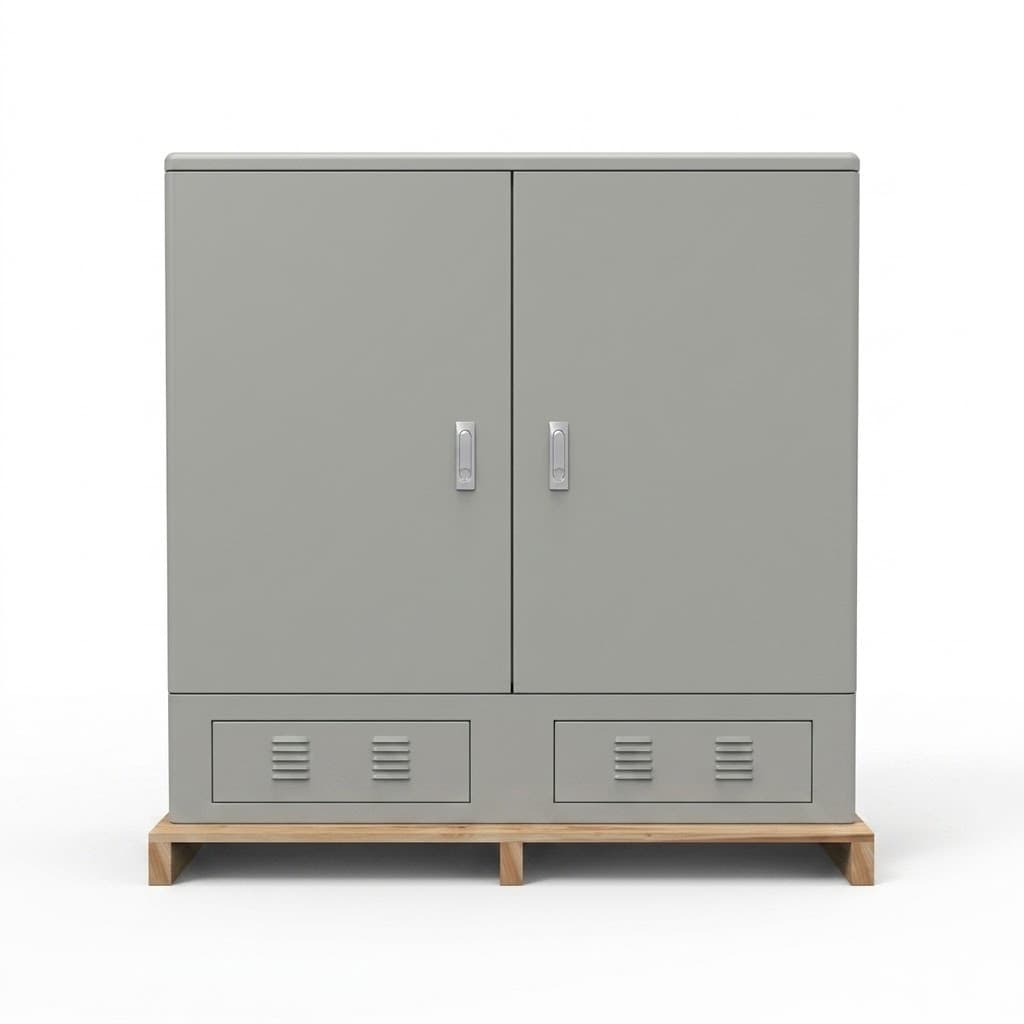

- High-strength SMC material or stainless steel provides strong and durable protection.
- IP65 protection helps protect the cabinet from water and dust.
- A reliable grounding system protects incoming and outgoing fiber cables.
- A dedicated direct splice unit supports direct fiber splicing inside the cabinet.
- The cabinet supports both ribbon fiber cables and bunch fiber optic cable.
- The modular design allows flexible configuration for different projects.Slots for install Cassette type 1:4, 1:8, 1:16, 1:32 PLC splitters
- Removable modules make installation and maintenance more convenient.
- The fiber routing system keeps the bending radius above 40 mm. Features a 30-degree tilt design to prevent laser injury to the eyes.
- Clear fiber labels make fiber identification and maintenance easier.
- The cabinet provides cable fixing, stripping, grounding, and fiber protection.
- Technicians can complete fiber distribution and cross-connection from the front side.
Fiber Distribution Capacity
The Outdoor Fiber Optic Cross Connect Cabinet supports different fiber capacities for various network applications.
Typical configurations include:
- 96 cores
- 144 cores
- 288 cores
- 576 cores
- 1152 cores
The final capacity depends on the cabinet size, splice trays, adapter panels, and fiber distribution modules.
Outdoor Applications
This fiber optic cross connect cabinet works well in many outdoor fiber networks, including:
- FTTH networks
- FTTx access networks
- Optical Distribution Networks (ODN)
- Fiber feeder distribution
- Roadside fiber distribution points
- Fiber-to-the-Building (FTTB)
- ISP broadband networks
- Outdoor telecom infrastructure
- Centralized fiber splicing and distribution
