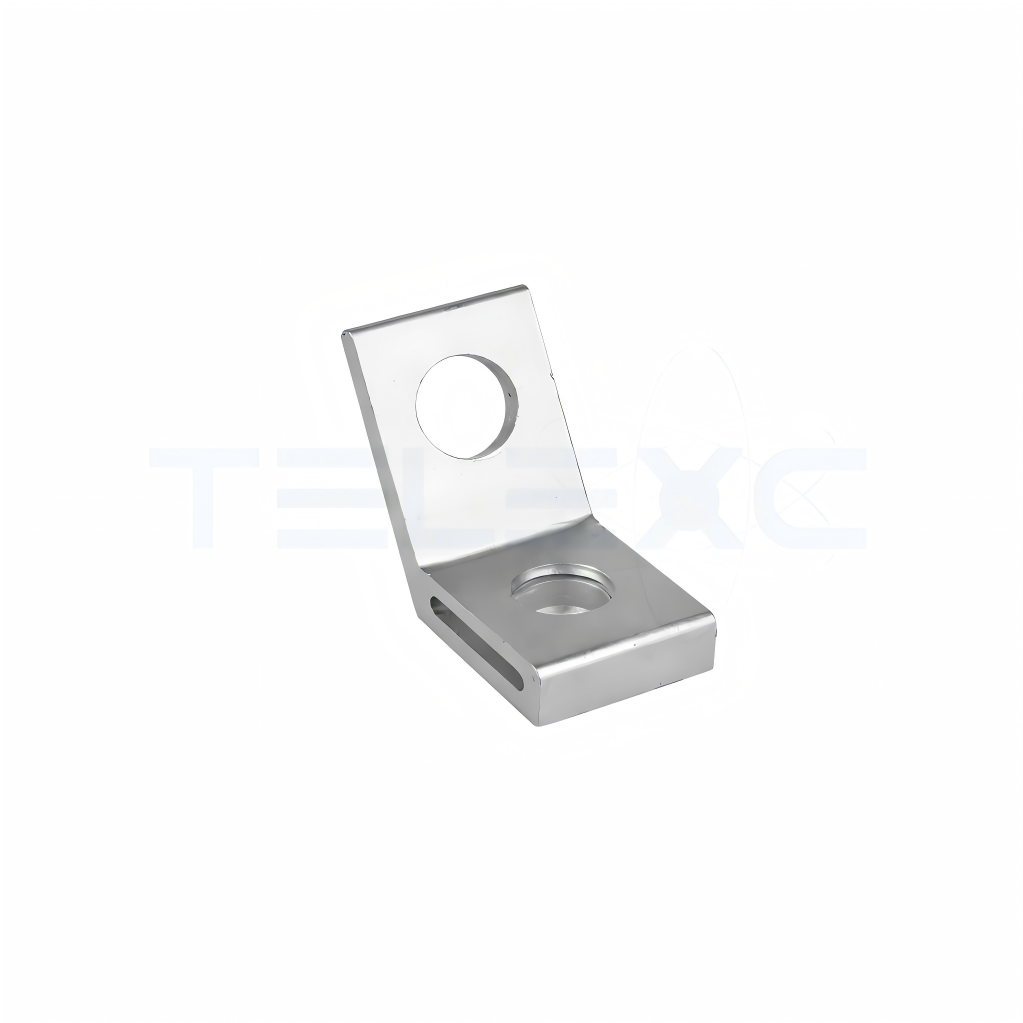

The Anchor Bracket (CA 25) is a premium aluminum alloy bracket designed for anchoring self-supporting insulated wires (ABC/SIW) in low-voltage distribution networks. The bracket ensures secure cable support at dead-end points or when transitioning cables from the main line to poles or building façades.
Manufactured from high-strength aluminum, it is lightweight yet exceptionally durable. Its corrosion-resistant and UV-stable construction allows it to withstand harsh outdoor environments, including extreme temperatures, humidity, and saline or industrial atmospheres. The universal mounting hole design ensures easy and reliable installation with steel banding or bolts, preventing slippage during use.
The TX-CA-25 bracket provides mechanical reliability, long service life, and simplified installation, making it an ideal choice for utility, industrial, and urban distribution applications.
International Standard Compliance
IEC Compatibility
Designed in alignment with the general IEC overhead line hardware performance requirements.
Outdoor Utility Standards
Suitable for low-voltage aerial bundled cable (ABC) distribution systems.
Climate Resistance Standards
Performs reliably under wide temperature and humidity variations.
Construction & Materials
Aluminum Alloy Body
Manufactured from high-grade aluminum alloy for superior strength and long service life.
Anti-Corrosion Surface
Special surface treatment enhances resistance against rust and chemical exposure.
Precision Engineering
Designed with accurate mounting holes to ensure stable and secure fixation.
Installation Guide (Step-by-Step)
- Prepare the Pole or Surface
- Ensure the pole or building surface is clean and free of debris.
- Position the Bracket
- Align the TX-CA-25 bracket at the desired anchoring point.
- Attach with a Steel Band or Bolt
- Wrap 20 mm steel tape around the pole through the bracket hole, or fix using a 10–12 mm bolt.
- Tighten securely to prevent movement.
- Secure the Cable
- Place the ABC/SIW cable in the bracket and connect to a dead-end or suspension clamp.
- Final Inspection
- Check that the bracket is properly aligned, stable, and that the cable is securely held.
- Ensure no slippage occurs before energizing the line.
Applications
Overhead LV ABC Networks
Used for anchoring self-supporting insulated overhead cables in distribution systems.
Pole Mounted Installations
Ideal for wooden, concrete, or steel pole-based electrical infrastructure.
Building Façade Entry Points
Supports cable entry from pole to building connection points.
Industrial Power Distribution
Suitable for factories and industrial outdoor power line setups.
Coastal & Harsh Environments
Performs effectively in saline and corrosive atmospheric conditions.
Product Advantages
High Load Capacity
Designed to withstand mechanical stress up to 4 kN for secure cable anchoring.
Long Service Life
Corrosion-resistant aluminum ensures extended operational durability.
Easy Installation
Simple mounting system reduces labor time and installation cost.
Maintenance Free Operation
No frequent servicing required due to robust material selection.
Safe Electrical Support
Ensures stable and secure overhead cable routing for improved safety.
FAQs
1. What is the TX-CA-25 Anchor Bracket used for?
It is used to anchor LV ABC cables on poles or building structures securely.
2. What material is it made of?
It is made of high-strength aluminum alloy with anti-corrosion properties.
3. Can it be used in outdoor environments?
Yes, it is designed for full outdoor use, including harsh weather conditions.
4. What is the load capacity?
It has a minimum breaking load of 4 kN.
5. How is it installed?
It can be installed using a 20 mm steel band or 10–12 mm bolts.
6. Is it compatible with all poles?
Yes, it works with wood, concrete, and metal poles.
7. Does it resist UV and corrosion?
Yes, it is UV-resistant and suitable for corrosive environments.
8. What cables does it support?
It is designed for self-supporting insulated ABC/SIW cables.
