Low Voltage Waterproof UV Resistant Insulation Piercing Connector

Key Features

Conductor Range: Main 4–35 mm² / Branch 4–35 mm²
Nominal Current: 150 A
Tightening Torque: 8 ± 1 Nm
Waterproof and UV-resistant thermoplastic housing
Tin-plated copper or aluminium blades for reliable conductivity
Shear-head bolt ensures correct tightening torque automatically
Captive insulated end caps prevent moisture ingress
Maintenance-free and corrosion-resistant design
Operating Temperature: -55°C to +55°C
Compatible with XLPE, PE, and PVC insulated cables
Suitable for energized installation when the main line is not under load

The TX-IPC-02 Low Voltage Insulation Piercing Connector provides a safe, efficient, and long-lasting solution for connecting insulated conductors in LV aerial bundled cable (ABC) systems. Built from UV-resistant and waterproof thermoplastic, it delivers consistent electrical performance and durability in outdoor environments. The connector enables direct tapping or branching of aluminium or copper conductors without stripping the insulation, ensuring secure, maintenance-free connections for power distribution applications.

Standard Compliance: NFC 33-020, ANSI C119.5, EN 50483-4

Construction & Materials

Contact Blades: Tin-plated copper or aluminium alloy
Body: Reinforced fiberglass thermoplastic for superior strength
Sealing: Waterproof elastomeric caps for reliable insulation protection

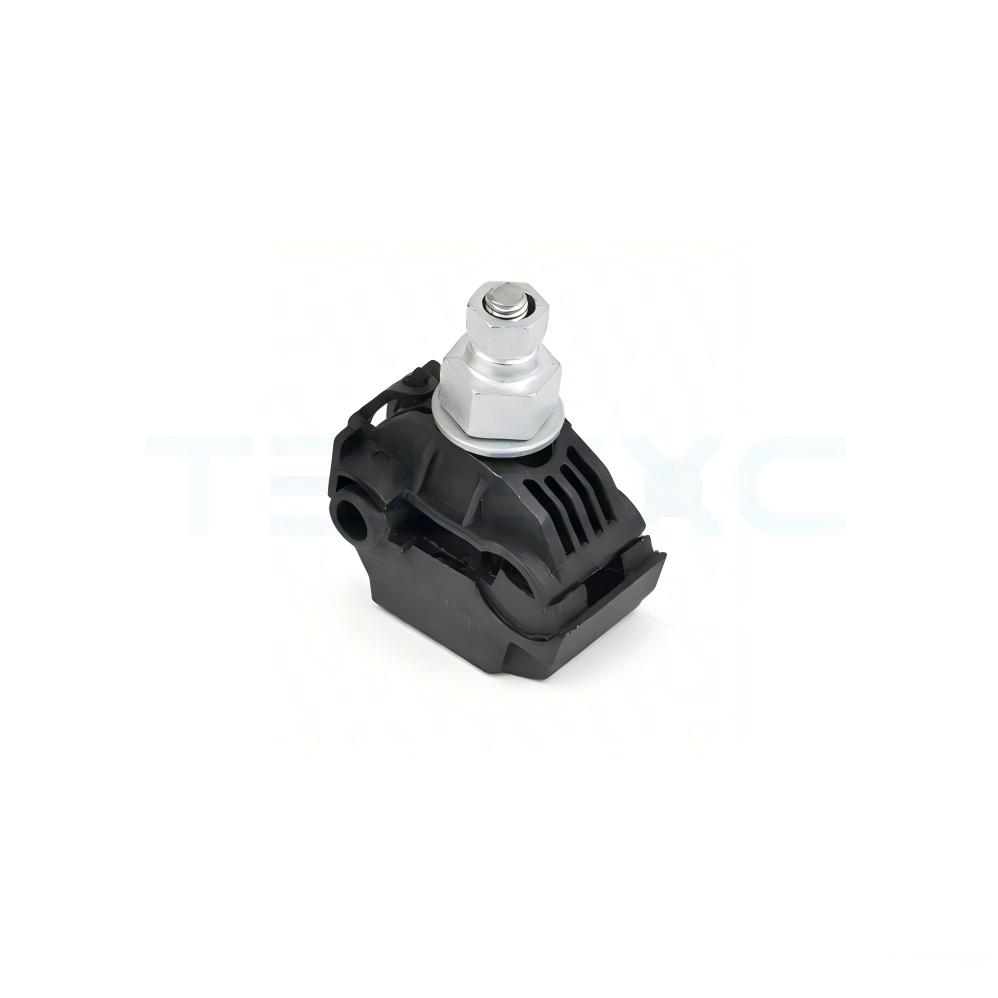

Thermoplastic Insulation Piercing Connector for LV cable

Performance & Reliability

Tested according to EN 50483-4, NFC 33-020, and ANSI C119.5 to ensure full mechanical, electrical, and environmental durability:

Withstands 6 kV voltage in a 30 cm water bath
Maintains stable contact resistance after overload and load cycling
Proven corrosion resistance under salt fog and SO₂ chamber tests
Resistant to UV, humidity, and temperature cycling without degradation

Installation Guide

Use a Dielectric Torque Wrench to install the connector. The shear-head nut ensures that the correct torque is automatically applied for consistent electrical contact and watertight sealing. Installation is simple and quick, with no need to strip cable insulation, reducing the risk of conductor damage and ensuring long service life.

Technical Parameters

Model	Main Line (mm²)	Branch Line (mm²)	Nominal Current (A)	Size (mm)	Weight (g)	Piercing Depth (mm)
TX-IPC-02	4–35	4–35	150	45×43×70	130	1.5–2

Applications (Telexc Insulation Piercing Connector)

Telexc Insulation Piercing Connectors are designed for reliable and fully insulated connections in various low-voltage power distribution systems, including:

Overhead LV Distribution Lines: Ideal for branching Aerial Bundled Cables (ABC) in utility and commercial networks.
Street Lighting and Service Taps: Ensures safe and durable connections for lighting poles and service lines.
Metering and Branch Connections: Suitable for LV distribution boxes, metering points, and T-junctions.
Utility Network Expansion and Maintenance: Simplifies upgrades and system modifications without cutting main conductors.
High-Rise Building Power Systems: Used as the main supply line clamp in vertical cable trunk or plug-in busbar systems, ensuring stable power delivery and operational safety.

Product Advantages (Telexc Insulation Piercing Connector)

Quick Direct Connection: Allows fast and reliable connection to conductors without the need to strip or cut cable insulation, ensuring simple and efficient installation.
Precision Torque Control: Features a shear-bolt head that automatically shears off at the correct torque, guaranteeing consistent, secure, and maintenance-free connections.
Enhanced Safety: Fully insulated, waterproof body with nonconductive sealing prevents accidental contact with live components and ensures long-term electrical safety.
Durable, Corrosion-Resistant Construction: Made from high-quality copper or aluminum with bimetallic tin-plated teeth for compatibility with both copper and aluminum conductors.
UV-Resistant and Flame-Retardant: Engineered to withstand harsh environmental conditions, providing excellent performance in outdoor and high-temperature applications.
Low Maintenance and Cost-Effective: Designed for extended service life with minimal upkeep, reducing installation time, operational costs, and system downtime.

FAQs – Telexc Insulation Piercing Connectors

1. How do I choose the right insulation piercing connector?
Select a connector suitable for your cable size and application. Telexc IPCs feature easy installation—no need to strip or cut the main cable insulation. They can be installed at any point along the line using a standard wrench, even on live conductors, ensuring a simple and reliable setup.

2. Are Telexc Insulation Piercing Connectors safe to use?
Yes. Telexc connectors are resistant to mechanical stress, vibration, moisture, corrosion, and aging. They have been proven in long-term field use for over 30 years with minimal maintenance requirements.

3. What are the economic advantages of using Telexc IPCs?
Their compact design minimizes installation space and eliminates the need for terminal or junction boxes, reducing both material and labor costs.

4. What types of cables are compatible with Telexc IPCs?
They are designed for low-voltage aerial bundled conductors (LV-ABC) and service cables, making them ideal for connections between utility lines and customer premises.

5. What tools are needed for installation?
Only a standard wrench with the correct hex socket size is required—no special tools are necessary.

6. How can I ensure the correct tightening torque during installation?
Each Telexc connector features a shear-head bolt that breaks off automatically when the optimal torque is reached, guaranteeing proper contact pressure and electrical reliability.

7. Do I need to strip the cable insulation before installation?
No. The built-in piercing blades automatically penetrate the cable insulation to create a secure electrical connection.

8. Is there any risk of electric shock from exposed metal parts?
No. Telexc IPCs are fully insulated, and all conductive parts are safely enclosed to prevent accidental contact during and after installation.
