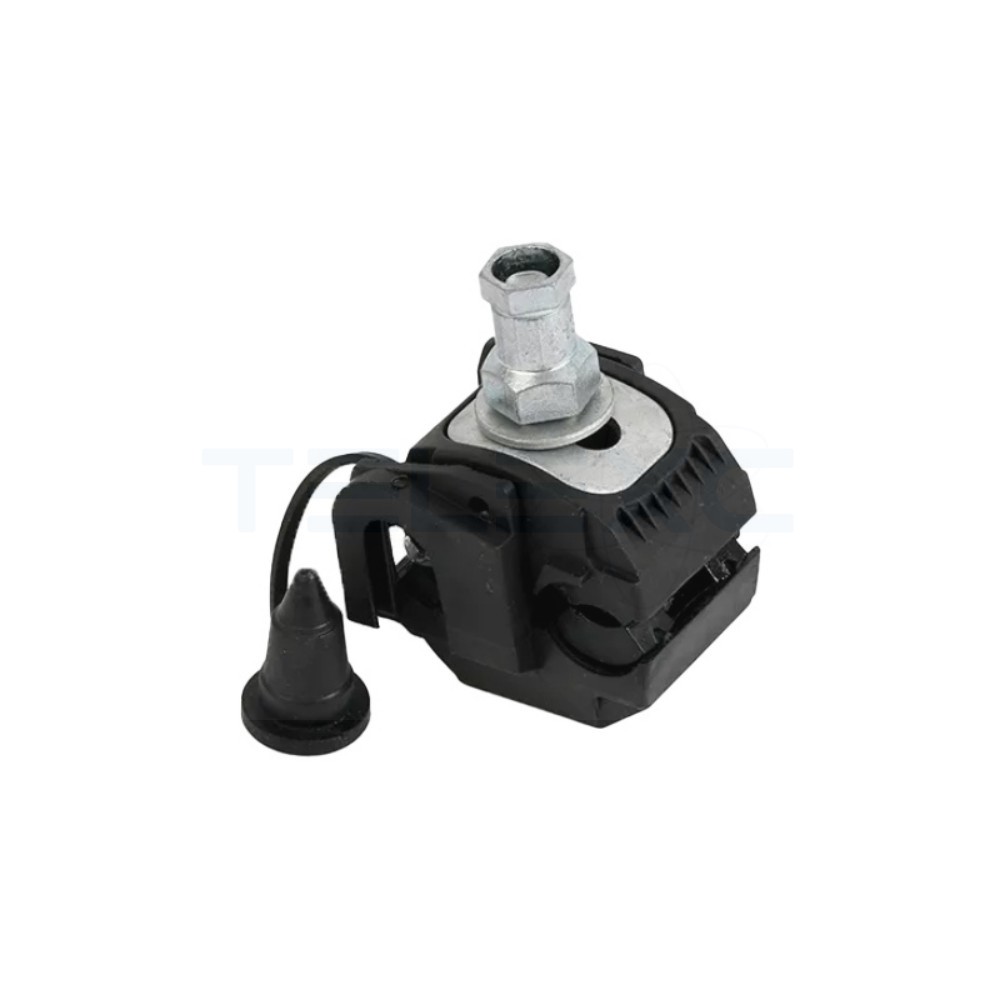

LV Insulation Piercing Connector Main 1.5–25 mm² / Branch 1.5–10 mm²

Key Features

Model No: TX-IPC-06 / (JJC2 Series)
Conductor Range: Main 16–95 mm² / Branch 1.5–10 mm²
Nominal Current: 55 A
Voltage: 0.6–1 kV
Tightening Torque: 9 ± 1 Nm
Waterproof and UV-resistant
Captive flexible end caps for moisture protection
Shear-head bolt ensures correct torque
Operating Temp: -55°C to +55°C
Compatible with XLPE, PE, or PVC conductors
Can be installed on an energized main if not under load

The TX-IPC-06 LV Insulation Piercing Connector is specifically designed for 0.6–1 kV ABC cables with a conductor range of 1.5–10 mm² (branch) and 16–95 mm² (main). Constructed from high-quality thermoplastic fiberglass-reinforced nylon, it provides durable, safe, and maintenance-free connections for both aluminium and copper conductors. Installation is quick and straightforward, requiring no stripping of cable insulation, which reduces installation time and minimizes the risk of conductor damage. This connector is ideal for residential, street lighting, low-voltage distribution networks, and other outdoor electrical applications, offering reliable performance in harsh weather conditions, including UV exposure, rain, and temperature fluctuations, ensuring long-lasting electrical safety, efficiency, and ease of installation in an LV network.

Standard Compliance: NFC 33-020, ANSI C119.5, EN 50483-4

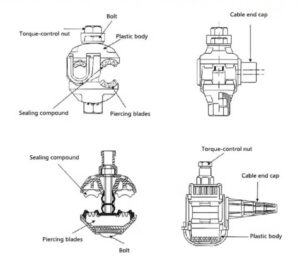

Construction & Materials

Blades: Tin-plated copper or aluminium alloy
Body: Thermoplastic fiberglass-reinforced nylon
Sealing: Waterproof elastomeric caps

Performance & Reliability

Tested to EN 50483-4, NFC 33-020, ANSI C119.5
Voltage withstand: 6 kV in a water bath and metallic balls
Stable contact resistance after overload/load cycling
Corrosion-resistant in salt fog and SO₂ chambers
UV, humidity, and temperature cycle-resistant

Installation Guide

Install using a dielectric torque wrench. Shear-head nut ensures correct torque and waterproof sealing. No insulation stripping is required.

Thermoplastic Insulation Piercing Connector for LV cable

Technical Parameters

Model	Equivalent	Main Line (mm²)	Branch Line (mm²)	Nominal Current (A)	Size (mm)	Weight (g)	Piercing Depth (mm)	Material of teeth	Bolt (Pcs)
TX-IPC-06	JJC-02	16–95	1.5–10	55	21×41×62	55	1.5–2	Al/Cu/Bimetallic	1*M8

Applications (Telexc Insulation Piercing Connector)

Telexc Insulation Piercing Connectors are designed for reliable and fully insulated connections in various low-voltage power distribution systems, including:

Overhead LV Distribution Lines: Ideal for branching Aerial Bundled Cables (ABC) in utility and commercial networks.
Street Lighting and Service Taps: Ensures safe and durable connections for lighting poles and service lines.
Metering and Branch Connections: Suitable for LV distribution boxes, metering points, and T-junctions.
Utility Network Expansion and Maintenance: Simplifies upgrades and system modifications without cutting main conductors.
High-Rise Building Power Systems: Used as the main supply line clamp in vertical cable trunk or plug-in busbar systems, ensuring stable power delivery and operational safety.

Product Advantages (Telexc Insulation Piercing Connector)

Quick Direct Connection: Allows fast and reliable connection to conductors without the need to strip or cut cable insulation, ensuring simple and efficient installation.
Precision Torque Control: Features a shear-bolt head that automatically shears off at the correct torque, guaranteeing consistent, secure, and maintenance-free connections.
Enhanced Safety: Fully insulated, waterproof body with nonconductive sealing prevents accidental contact with live components and ensures long-term electrical safety.
Durable, Corrosion-Resistant Construction: Made from high-quality copper or aluminum with bimetallic tin-plated teeth for compatibility with both copper and aluminum conductors.
UV-Resistant and Flame-Retardant: Engineered to withstand harsh environmental conditions, providing excellent performance in outdoor and high-temperature applications.
Low Maintenance and Cost-Effective: Designed for extended service life with minimal upkeep, reducing installation time, operational costs, and system downtime.

FAQs – Telexc Insulation Piercing Connectors

1. How do I choose the right insulation piercing connector?
Select a connector suitable for your cable size and application. Telexc IPCs feature easy installation—no need to strip or cut the main cable insulation. They can be installed at any point along the line using a standard wrench, even on live conductors, ensuring a simple and reliable setup.

2. Are Telexc Insulation Piercing Connectors safe to use?
Yes. Telexc connectors are resistant to mechanical stress, vibration, moisture, corrosion, and aging. They have been proven in long-term field use for over 30 years with minimal maintenance requirements.

3. What are the economic advantages of using Telexc IPCs?
Their compact design minimizes installation space and eliminates the need for terminal or junction boxes, reducing both material and labor costs.

4. What types of cables are compatible with Telexc IPCs?
They are designed for low-voltage aerial bundled conductors (LV-ABC) and service cables, making them ideal for connections between utility lines and customer premises.

5. What tools are needed for installation?
Only a standard wrench with the correct hex socket size is required—no special tools are necessary.

6. How can I ensure the correct tightening torque during installation?
Each Telexc connector features a shear-head bolt that breaks off automatically when the optimal torque is reached, guaranteeing proper contact pressure and electrical reliability.

7. Do I need to strip the cable insulation before installation?
No. The built-in piercing blades automatically penetrate the cable insulation to create a secure electrical connection.

8. Is there any risk of electric shock from exposed metal parts?
No. Telexc IPCs are fully insulated, and all conductive parts are safely enclosed to prevent accidental contact during and after installation.
