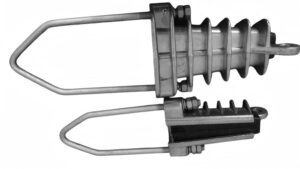

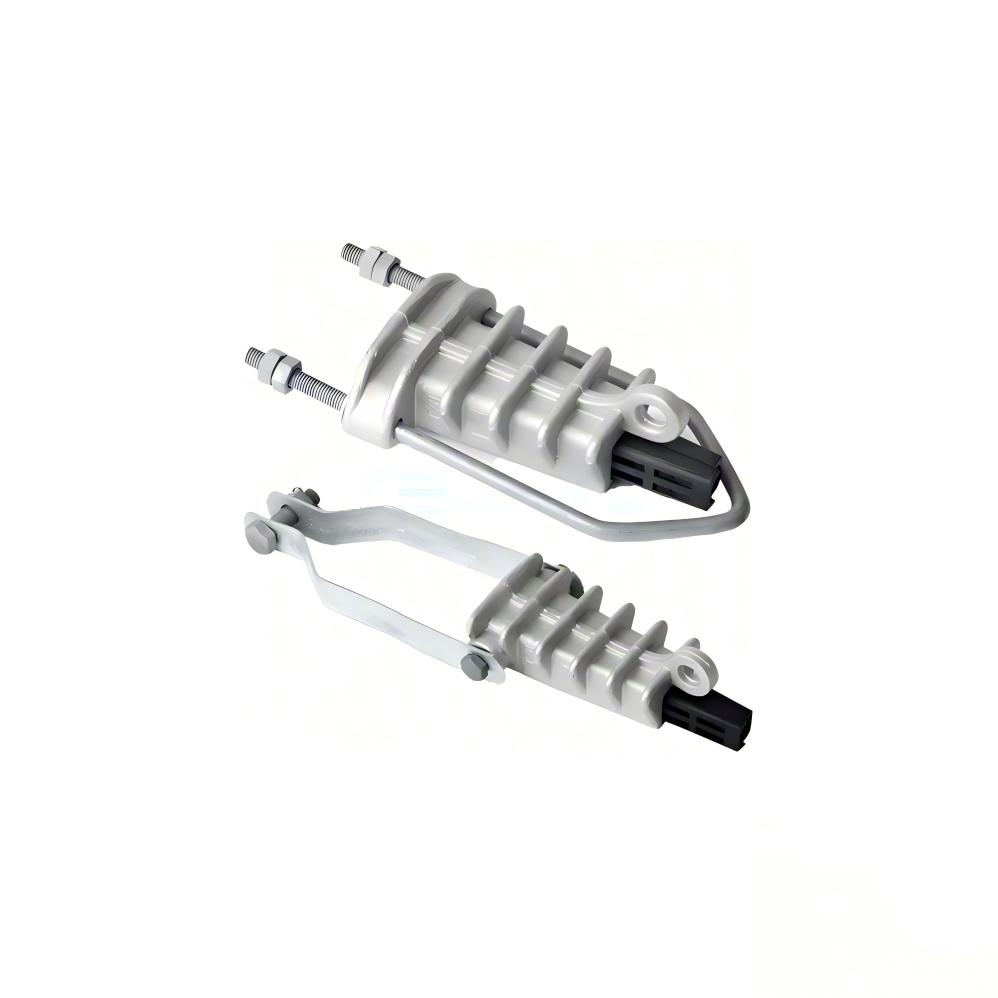

Wedge Strain Clamp for Insulated Cables – NXJ Series

Wedge Strain Clamp for Insulated Cables – NXJ Series

Key Features

  • Wedge Mechanism Design
    Provides a strong, self-tightening grip that securely holds the cable without causing damage.
  • Multi-Voltage Compatibility
    Suitable for 1 kV to 20 kV applications in overhead power distribution systems.
  • Durable Material Construction
    Made from aluminum alloy and UV-resistant fiberglass for long-lasting outdoor performance.
  • Wide Temperature Resistance
    Reliable operation in extreme climates ranging from -40°C to +60°C.
  • Easy Installation Process
    Simple positioning and tightening system reduces installation time and effort.
  • Corrosion Resistant Body
    Designed to withstand humidity, salt spray, and harsh environmental conditions.
  • ADSS Cable Compatibility
    Ideal for use with ADSS optical cables and insulated aluminum conductors.
  • High Mechanical Strength
    Provides gripping strength ranging from 3.4 kN to 28.2 kN for secure support.
  • Industry Standard Compliance
    Manufactured in accordance with recognized overhead line safety standards.

https://telexc.com/contact/

Category: Tags: , , , , , , , , , , , , , , , , ,

Wedge Strain Clamp for Insulated Cables is engineered for secure termination and anchoring of 10kV and below overhead insulated aluminum core cables (JKLYJ) or ADSS optical cables. Designed with a robust wedge mechanism, these clamps ensure reliable tensioning without damaging cable insulation. Ideal for corner, splice, and terminal connections in power distribution and telecommunication networks, the NXJ series guarantees long-term performance under diverse environmental conditions. The wedge strain clamp is specifically designed for securing insulated cables, particularly those used in low-voltage power distribution systems.

Material Composition

  • Body: Aluminum alloy

  • Insulating Components: UV-resistant fiberglass-reinforced plastic

  • Wedge: Precision-engineered for secure cable gripping

Installation Process

  1. Preparation: Verify clamp compatibility with cable specifications.

  2. Positioning: Place the clamp around the insulated cable at the desired location.

  3. Tightening: Secure the wedge mechanism to achieve a firm grip without damaging insulation.

  4. Inspection: Ensure proper tensioning and cable support.

Standards Compliance

  • Designed to meet industry safety and performance standards

  • Suitable for overhead insulated cable systems

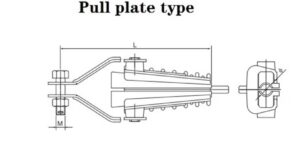

NXJ
Wedge Strain Clamp for Insulated Cables – NXJ Series

Technical Specifications

TYPE

Insulated Al cable size(mm²)

core size

grip strength (kN)

breaking load (kN)



1kV

10kV

20kV







NXJ1

16-35





7.1-10

1.6

13.7

NXJ2

50-70

16-25



11.7-13.7

2.4

13.7

NXJ3

95

35-50



14.8-16.1

4.55

13.7

NXJ4

50-70

10-16



11.2-12.8



21

NXJ5

70-95

16-35



12.6-15.8



21

NXJ6

95-120

35-50



14.8-16.7



21

NXJ7

120-150

70-95

25-35

17.8-19.4

8.9

21

NXJ8

185

120-150

50-70

20.8-22.4

13.65

21

NXJ9

185

120-150

50-70

20.8-22.4

13.65

43.3

NXJ10

240

185-240

95-120

24-26.2

22.5



NXJ11



300

120-150

28.4

28.2

46.5
NEJ Wedge strain
NXJ Wedge strain


Applications

  • Overhead Power Lines – Anchors and tensions cables in distribution systems

  • Street Lighting – Secures cables for public illumination networks

  • Telecommunications – Supports data and signal transmission lines

  • Renewable Energy – Manages cables in solar and wind power installations

  • Industrial Facilities – Organizes power and control cables safely

  • Substation Installations – Anchors connections between transformers and equipment

Product Advantages

  1. Secure Wedge Grip: The wedge mechanism ensures a firm grip on the cable, preventing slippage under load.

  2. Insulation Protection: The clamps are generally easy to install, often requiring only basic tools and following straightforward procedures.

  3. Weather-Resistant Build: Made from high-quality materials like aluminum alloy and UV-resistant fiberglass, these clamps are built to last in various weather conditions.

  4. Quick Installation: Simple setup with basic tools

  5. Even Load Distribution: The clamp’s design helps distribute the load evenly across the cable, reducing stress points for enhanced safety.



FAQs – Wedge Strain Clamp for Insulated Cables (NEJ Series)

Q1: What types of cables are compatible with the NEJ Series wedge strain clamps?
NEJ Series clamps are designed for overhead insulated aluminum core cables (JKLYJ) up to 10 kV and ADSS optical cables. They are suitable for both power distribution and telecommunication applications.

Q2: What voltage levels can the NEJ Series support?
The clamps are rated for 1 kV to 20 kV applications, making them suitable for low- and medium-voltage overhead insulated cable systems.

Q3: Will the wedge mechanism damage the cable insulation?
No. The precision-engineered wedge and fiberglass-reinforced insulating components ensure firm gripping without cutting, crushing, or damaging the cable insulation.

Q4: What installation points are suitable for NEJ Series clamps?
They are commonly used at terminal poles, corner poles, angle points, splice locations, and dead-end positions in overhead line networks.

Q5: Are these clamps suitable for harsh environmental conditions?
Yes. NEJ Series clamps operate reliably in temperatures from –40°C to +60°C and feature corrosion-resistant aluminum alloy and UV-resistant fiberglass components, making them suitable for humid, coastal, and industrial environments.

Q6: What is the grip strength or mechanical load capacity of the NEJ Series?
Depending on the model, the rated grip strength ranges from 3.4 kN to 28.2 kN, ensuring secure and stable cable anchoring.

Q7: Can NEJ Series clamps be used for ADSS fiber optic cables?
Yes. The clamp design is ADSS-compatible and provides secure anchoring without compromising the integrity of optical fibers.

Q8: Are special tools required for installation?
No special tools are required. Installation involves simple positioning and tightening using standard hand tools.

Q9: Do NEJ Series clamps comply with industry standards?
Yes. The clamps are designed in accordance with overhead line safety and performance standards for insulated cable systems.

Q10: Does Telexc provide customized NEJ Series wedge strain clamps?
Yes. Telexc offers OEM and ODM customization, including size, mechanical rating, material selection, and branding to meet specific project or utility requirements.
