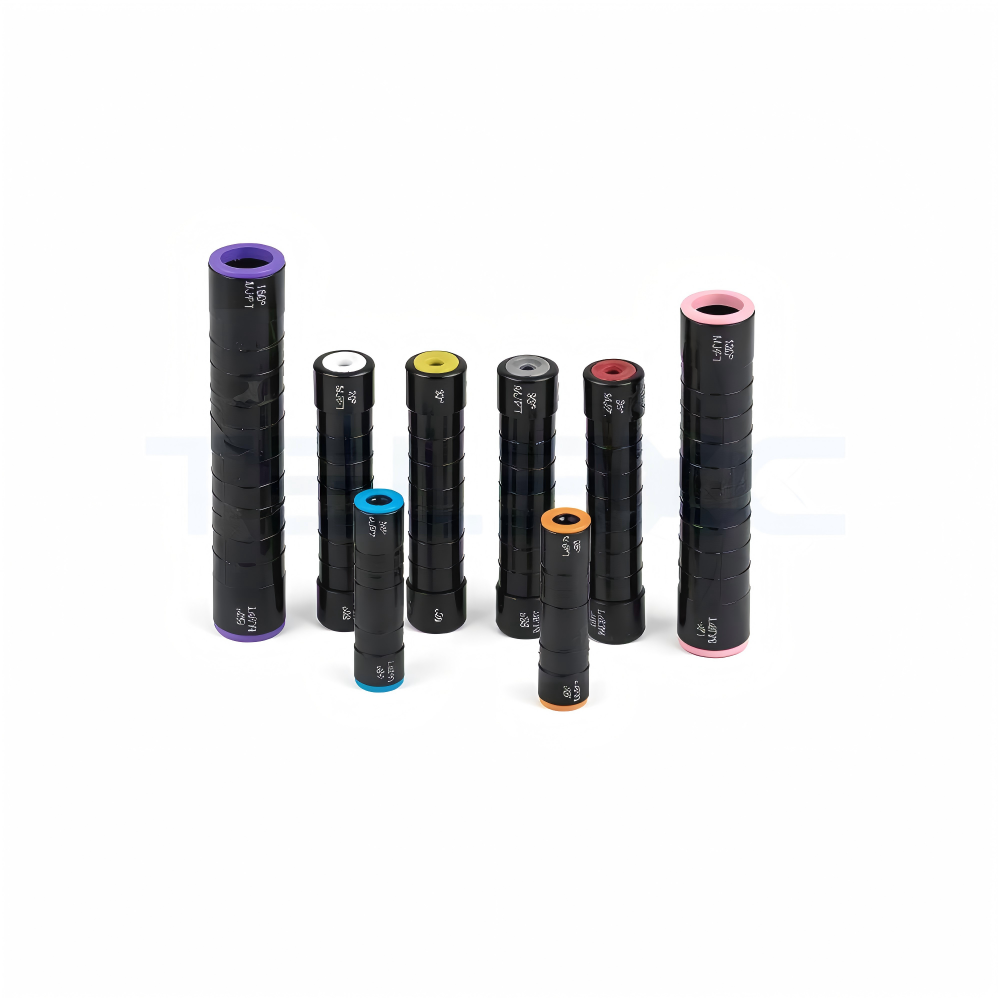

Pre-Insulated Cable Sleeves are designed for reliable connection of low-voltage aerial bundled cables (LV-ABC), including phase conductors and neutral messenger lines.
Manufactured from high-purity aluminum and equipped with a weather-resistant insulation sheath, these sleeves provide excellent electrical continuity, mechanical strength, and long-term protection against moisture, corrosion, and environmental aging. Pre-filled contact grease and elastomeric sealing rings ensure superior waterproofing, making the sleeves suitable for outdoor distribution networks.
International Standard Compliance
-
EN 50483-4 – Insulated connectors for LV ABC systems
-
NF C33-021 – French standard for pre-insulated connectors
-
ESI 43-14 – Mechanical and electrical performance
-
RoHS Compliant
Construction & Materials
-
Sleeve Material: Aluminum ≥ 99.5%
-
Insulation: Weather- and UV-resistant polymer
-
Sealing: Elastomeric ring with silicone contact grease
-
Design: Pre-insulated compression sleeve with central stop
Inspection & Testing
Installation Guide
-
Strip the cable insulation to the required length.
-
Insert stripped conductor fully into the TX-MJPT sleeve until it reaches the stop.
-
Crimp over the insulation according to the markings on the sleeve.
-
Use the recommended crimping die size.
-
After crimping, electrical contact and sealing are achieved automatically.
-
Visually inspect the joint for proper compression.
Pre-insulated cable sleeves ensure waterproof, reliable connections for LV ABC overhead distribution networks. Pre-Insulated Connector.
FAQs
Q1: What is a pre-insulated cable sleeve used for?
It is used to join insulated aluminum conductors in LV aerial bundled cable systems.
Q2: Are TX-MJPT sleeves waterproof?
Yes, they are tested at 6 kV under water and provide excellent water tightness.
Q3: Is insulation stripping required?
Yes, the cable insulation must be stripped before insertion as per the marked length.
Q4: Can these sleeves be used outdoors?
Yes, the insulation material is UV- and weather-resistant.
Q5: Which conductors are compatible?
They are suitable for insulated stranded aluminum conductors.
