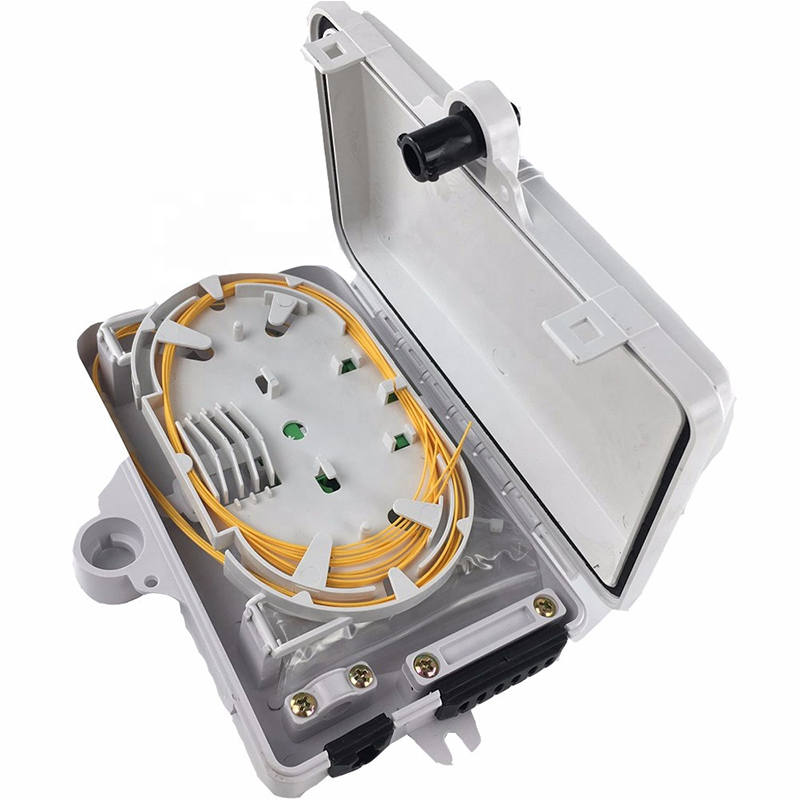

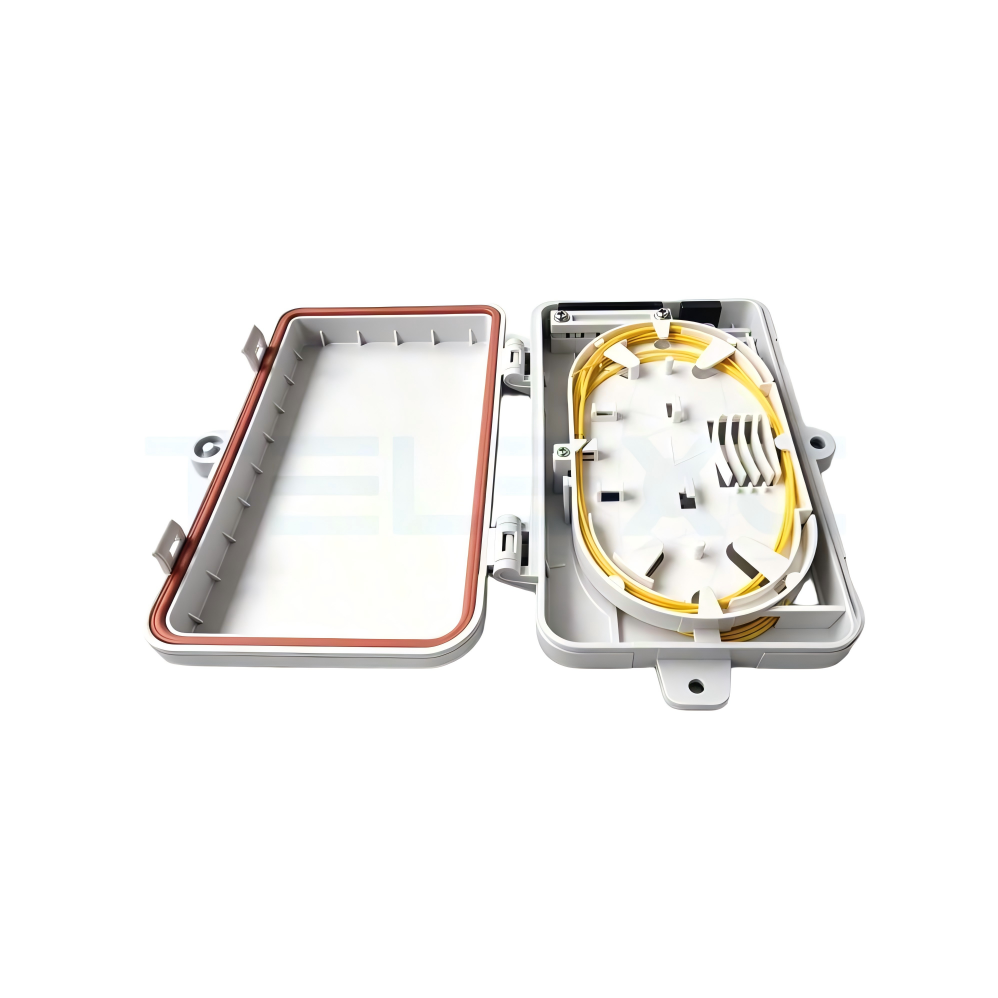

6 Core Fiber Distribution Box – FDB Series

Fiber Distribution Box 6 Core by Telexc is designed as a termination and distribution point for feeder and drop cables in FTTX access networks. The enclosure supports fiber splicing, splitting, and distribution within a single compact unit, ensuring organized cable routing and secure fiber management. Manufactured from high-quality UV-resistant plastic, the box provides reliable protection against dust, moisture, and environmental exposure. Its internal turnover structure simplifies installation and maintenance, while compatibility with SC adapters makes it suitable for modern FTTH deployments. Ideal for indoor and outdoor use, this distribution box delivers stable performance, easy expansion, and long service life in residential, commercial, and telecom network applications.

Model Number

TX-FDB-06

International Standard Compliance

• IEC 61754

• IEC 60794

• ISO 9001 Quality Management

• RoHS Compliant

Construction & Materials

• Enclosure Material: High-quality UV-resistant ABS plastic

• Internal Structure: Integrated splice tray and fiber routing paths

• Adapter Support: SC APC / SC UPC

• Protection Level: IP55 rated

• Mounting: Wall or pole mounting supported

Model Number (Telexc Series)

• TX-FDB-06

Installation Guide

1. Fix the box on the wall or pole using mounting accessories

2. Insert the feeder cable through the inlet and secure it properly

3. Perform fiber splicing on the internal splice tray

4. Install adapters and connect patch cords or drop cables

5. Close and lock the cover to complete the installation
