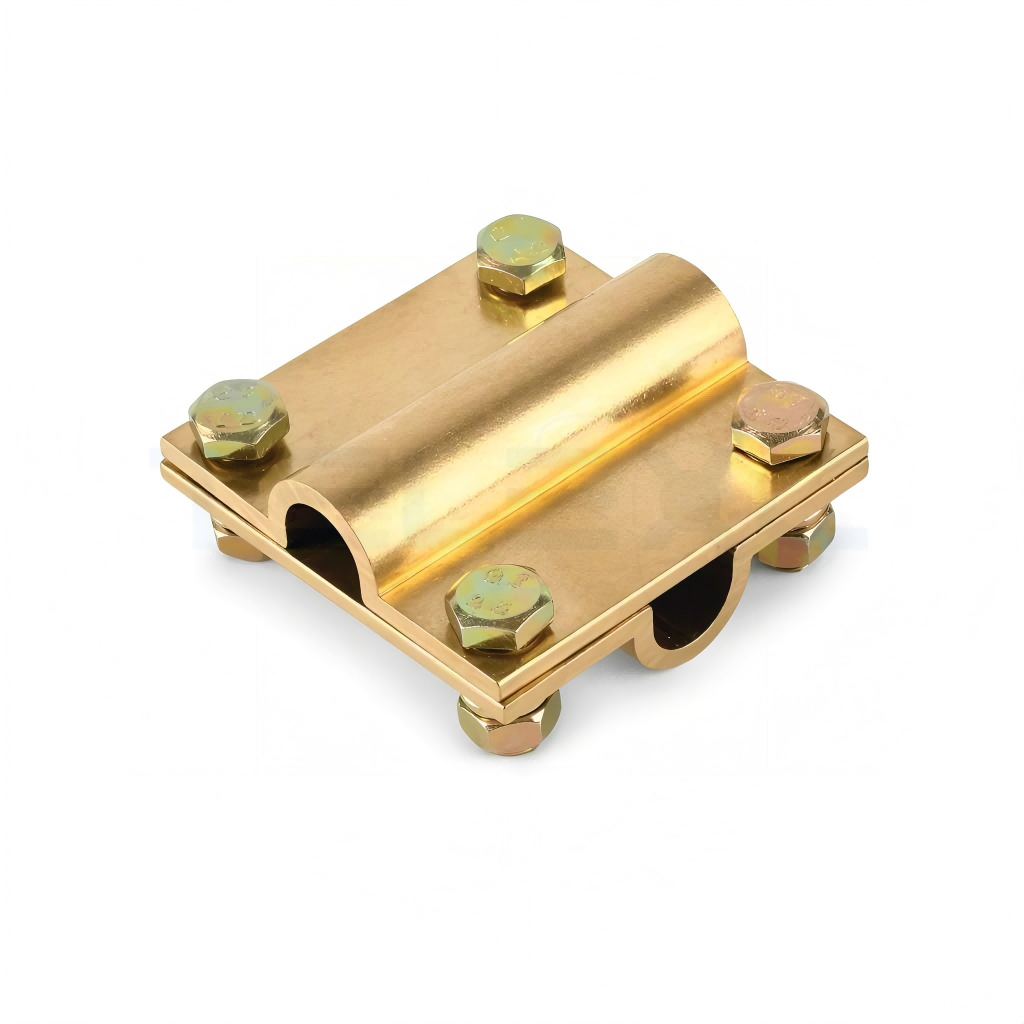

Square Clamp for Round Conductors (Lightning Protection System)

Key Features

Four-Way Connection Design
Supports cross, T, and straight-through conductor joints.
Round Conductor Compatibility
Suitable for circular lightning protection conductors.
High Conductivity Alloy
Tightening Torque: 6 Nm
Ensures efficient current flow with minimal resistance.
Secure Mounting Base
Countersunk hole allows stable surface installation.
Standard Compliant Design
Manufactured as per BS EN 62561-1 requirements.

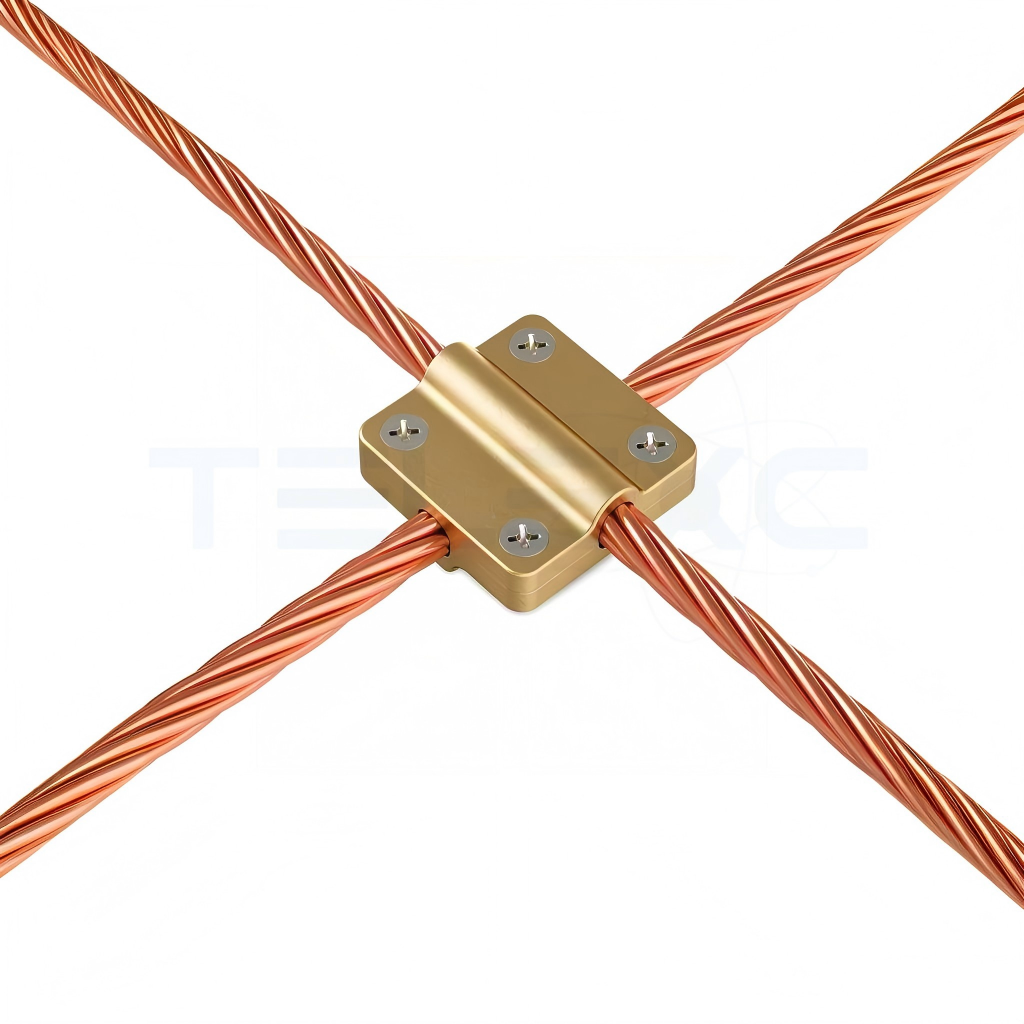

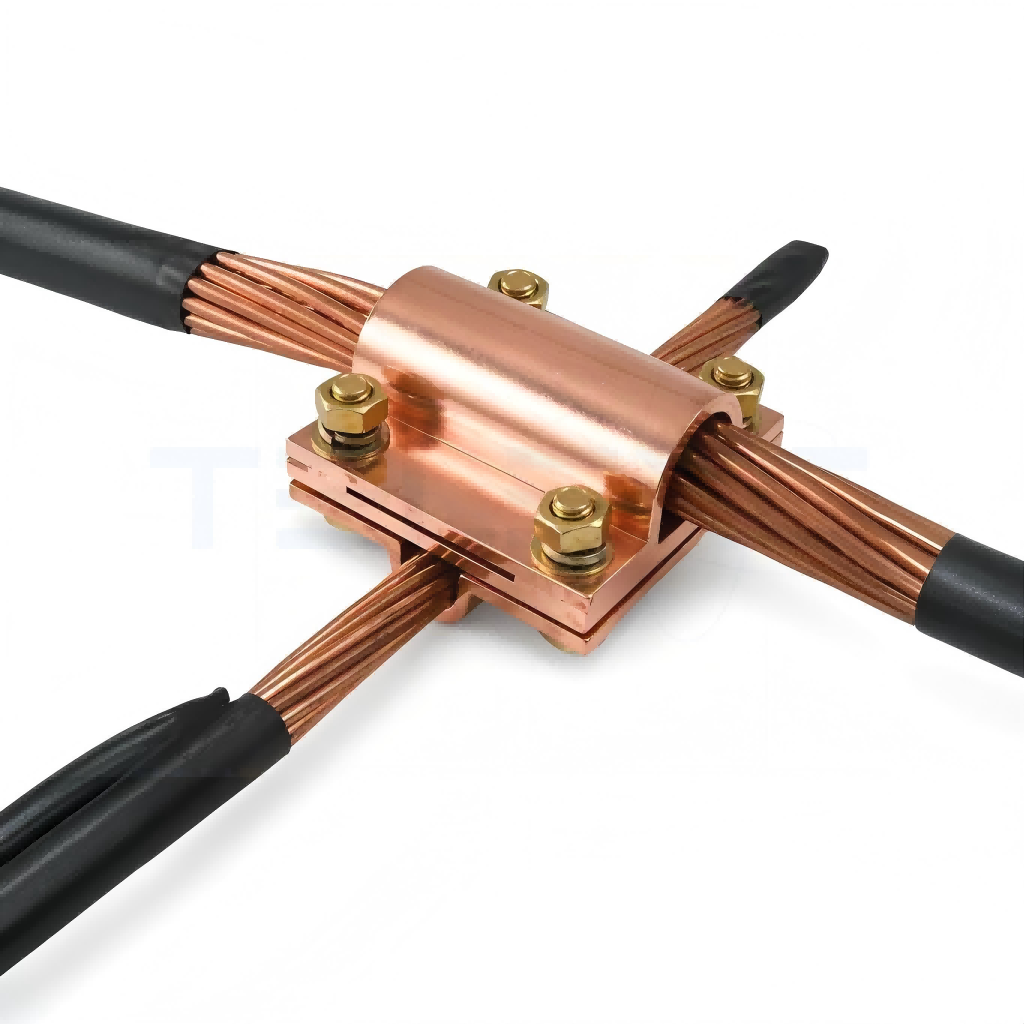

Square Clamp for Round Conductors is a high-performance four-way connector designed for lightning protection and earthing networks. It enables secure cross, T-joint, and straight-through connections of circular conductors, ensuring continuous and low-resistance grounding pathways in structural and industrial installations.

Manufactured from aluminium or copper alloy, the clamp offers excellent conductivity, corrosion resistance, and long-term mechanical stability. It supports cross, T, and straight-through conductor joints. Its countersunk base design allows firm surface mounting, making it suitable for building-mounted lightning protection systems and structured earthing networks. Square Clamp for round conductors ensures secure lightning protection connections with high conductivity, durability, and BS EN 62561 compliance.

International Standard Compliance

BS EN 62561-1 Class H compliant
Suitable for IEC lightning protection systems
RoHS-compliant materials
Manufactured under ISO quality systems

Construction & Materials

Body Material: Aluminium / Copper alloy
Design: Four-way square clamp structure
Base: Countersunk mounting hole
Finish: Corrosion-resistant surface treatment
Fastening: Screw-tightened cover system

Installation Guide

Surface Preparation: Clean and level the mounting surface.
Position Conductors: Place round conductors in clamp grooves.
Align Joint Type: Set for cross, T, or straight connection.
Fix Base: Secure clamp using countersunk mounting hole.
Tighten Screws: Apply recommended torque (6 Nm).

Technical Parameters

Parameter	Specification
Model No.	TX-SQC Series
Product Type	Square Clamp (Round Conductor Type)
Material Options	Aluminium / Copper Alloy
Standard	BS EN 62561-1 (Class H)
Tightening Torque	6 Nm
Conductor Size	8 mm Dia, 50 mm², 70 mm², 95 mm²
Weight Range	0.23 – 0.33 kg
Connection Type	4-Way Connection
Mounting Type	Countersunk Base Fixing

Applications

Lightning Protection Systems

Used for interconnecting down conductors.
Ensures safe discharge of lightning current.

Building Earthing Networks

Provides structured grounding for structures.
Maintains electrical safety compliance.

Industrial Installations

Suitable for factories and heavy electrical systems.
Ensures stable conductor connections.

Roof & Wall Mounted Systems

Used for surface-mounted lightning conductors.
Ensures neat and secure installation.

Utility Infrastructure

Applied in power and telecom grounding systems.
Supports continuous earthing networks.

Product Advantages

Strong Mechanical Stability

Provides a firm grip on round conductors.
Prevents loosening under vibration.

Efficient Electrical Performance

Ensures low resistance current flow.
Improves grounding efficiency.

Corrosion-Resistant Design

Suitable for outdoor harsh environments.
Extends service life significantly.

Flexible Connection Options

Supports multiple joint configurations.
Ideal for complex routing systems.

Easy Installation

Simple mounting and tightening process.
Reduces installation time and labor.

FAQs

1. What is a square clamp used for?
It is used for connecting round conductors in lightning protection systems.

2. What materials are available?
Aluminium and copper alloy options are available.

3. Is it suitable for outdoor installation?
Yes, it is designed for outdoor and harsh environments.

4. What connection types does it support?
Cross, T-joint, and straight-through connections.

5. What standard does it follow?
It complies with BS EN 62561-1 Class H.

6. What tightening torque is required?
Recommended torque is 6 Nm.

7. Can it be used for earthing systems?
Yes, it is widely used in grounding and lightning protection systems.

8. How is it mounted?
It is fixed using a countersunk base hole and screws.
